Thread: How To: 4AGE conversion into ke70 wiring

  1. #1
    Senior Member Brendan's Avatar
    Join Date
    Jan 2009
    Name
    Brendan
    State
    SA
    Location
    Australia
    Country
    Australia
    Posts
    274

    Default How To: 4AGE conversion into ke70 wiring


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    the following is for a jdm ae86 4age motor into a ksev

    The way I did my wiring was simple: on the loom to the ecu there is a plug that has a black and orange wire and a black and white wire (there are more wires but not as important). Give the black and orange wire power from the run position on the ignition. The black and white wire needs power from the start (crank) position on the ignition. Then on the 14 pin plug on the ecu, connect the two red and blue wires and the red and white wire together which also requires run power.

    I can't remember if the ecu needs direct power but if the above doesn't work try run power to the yellow wire on the ten pin plug on the ecu.

    Also make sure you have the motor well grounded.


    Tommorow I will work on altenator wiring

    Peace out for now
    Last edited by Brendan; 2nd March 2009 at 05:35 PM. Reason: changed colours around

  • #2
    Senior Member --Redwork--'s Avatar
    Join Date
    Jan 2009
    Name
    Jason
    State
    QLD
    Location
    Nundah
    Country
    Australia
    Posts
    954

    Default

    Can Any one tell me if this is correct when using a Oz spec loom with JDM ecu.??
    Doing my converson on the weekend and need the info...

  • #3
    Veteran Nikkojoe's Avatar
    Join Date
    Dec 2008
    Name
    Tom
    State
    WA
    Location
    Perth
    Country
    Australia
    Posts
    2,260

    Default

    Use this link followed by this link and cross reference the two. Follow JDM ae86 looms when wiring an ae82 as they are pretty much the same.
    1983 AE86 ADM rust spec goodness track car build - end of the road
    1984 AE86 Silver ADM mk2 daily build - SOLD
    1984 AE86 ADM granny car daily now 4AGZE - SOLD
    1983 AE86 ADM Engine Conversion Slut - SOLD
    2002 IS200 6spd - new daily in progress
    1986 AE86 JDM GT-Apex Levin Notchback ready to roll......

  • #4
    Senior Member Sprinter86's Avatar
    Join Date
    Dec 2008
    Name
    Nathan
    State
    VIC
    Location
    Lilydale
    Country
    Australia
    Posts
    691

    Default

    just to add to what uve already said,
    the red and white wire on the 14pin plug should have battery power, fused of course.

    oh and so people dont get confused, when ure talking about wire colours when they have a tracer of a different colour, you should state the main colour first.

    ie. the black/white wire is the starter wire, and the black/orange is the ignition power.

  • #5
    Veteran Nikkojoe's Avatar
    Join Date
    Dec 2008
    Name
    Tom
    State
    WA
    Location
    Perth
    Country
    Australia
    Posts
    2,260

    Default

    To add to my rushed comment:

    -Two black-red ecu wires labled +B and +B1 join together, and connect to EFI Main relay output in the ae86 fusebox OR to a 12V ignition switched relay.

    -Red-white which is labled BATT, obviously goes to 12V constant battery (can be tapped off a thick white wire in the passenger kick panel fuse/relay area - check with multimeter). Add a small fuse if you like, 2.5-5amp?

    -Black orange wire near coil on a 4ac is 12V on ignition. This can be connected to the positive terminal on the 4age coil and will power the igniter if the igniter is hooked up correctly as per factory to the coil.

    -The injector power wire BF (Yellow usually), pin 10 on the 10pin plug can sometimes not get 12V depending on how the loom is wired. For fail safe measures give that 12V switched on ignition.

    Alternator Wiring (4ac-4age - Maybe 4k aswell).
    AE82 usually has the correct colours, they are:

    Yellow or Yellow/white - Lamp
    Black/yellow - Ignition
    White - Sense

    and then the 2 thick white wires that bolt to the alternator, which go directly to battery.

    Sense is used to detect the 12V presence, so you can wire that to the battery OR tap it into the wires on the bolt on strap to the alternator.

    On a 4ac, the external voltage regulator sits on the passenger side strut tower. You have 3 wires that come from the 4ac alternator which go into the regulator (blue, white and red - from memory). The other wires on the plug are the ones to look for, and should basically match up colour for colour.

    I will add a proper alternator guide soon
    1983 AE86 ADM rust spec goodness track car build - end of the road
    1984 AE86 Silver ADM mk2 daily build - SOLD
    1984 AE86 ADM granny car daily now 4AGZE - SOLD
    1983 AE86 ADM Engine Conversion Slut - SOLD
    2002 IS200 6spd - new daily in progress
    1986 AE86 JDM GT-Apex Levin Notchback ready to roll......

  • #6
    Senior Member Brendan's Avatar
    Join Date
    Jan 2009
    Name
    Brendan
    State
    SA
    Location
    Australia
    Country
    Australia
    Posts
    274

    Default

    hey guys thanks for adding with more info :-) this my first "How to" post lol and yeah shouldve named main colour before trace.

    Rightio, on my altenator, I have a 3pin round plug, white, black and blue wires. Sounds like everyone else gas different colours to me? Can some one help me? I've tried wiring it up best I can but I don't think it's charging. Thanks

  • #7
    Senior Member Sprinter86's Avatar
    Join Date
    Dec 2008
    Name
    Nathan
    State
    VIC
    Location
    Lilydale
    Country
    Australia
    Posts
    691

    Default



    hope this helps you work out which ones are which mate.

  • #8
    Senior Member Brendan's Avatar
    Join Date
    Jan 2009
    Name
    Brendan
    State
    SA
    Location
    Australia
    Country
    Australia
    Posts
    274

    Default

    just a thought, why couldn't anyone tell mehow to wire my shitup before? I asked this question myself and couldn't find a thread as exact as this one lol.

    It wasn't until I figured it out myself that someone had a reply lol

    Oh well, at least the next noob will know from this =D

  • #9
    Veteran pen15's Avatar
    Join Date
    Dec 2008
    Name
    Mathew
    State
    NSW
    Location
    Sutho Shire
    Country
    Australia
    Posts
    1,859

    Default

    i dont suppose any1 of you have pics of said loom ready for install? i am trying to wire up my new jdm loom for an easy install after my motor goes in cheers all
    the dyno pull to 300rwkw

    BT20v is making 300rwkw like i said i would without nitrous so now its time for some spray and see if she will run a 10s or less

  • #10
    Veteran Golberg's Avatar
    Join Date
    Dec 2008
    Name
    Lawrence
    State
    NSW
    Location
    Wollongong
    Country
    Australia
    Posts
    1,339

    Default


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Quote Originally Posted by Sprinter86 View Post


    hope this helps you work out which ones are which mate.

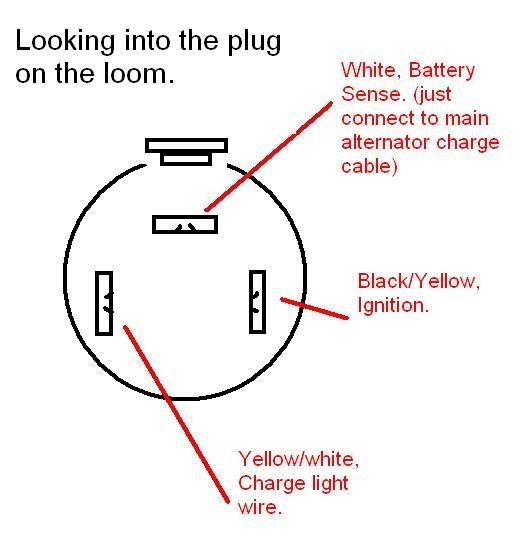

    That's a good diagram, the only thing is for some reason Toyota love to change the colors of the wires coming out of it, so for all those reading. If your colors don't match the ones listed, ignore them and just follow the pinout shown.
