Thread: Roll Cage i fab'd this week

  1. #1

    Default Roll Cage i fab'd this week


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    got a new mandrell benders a couple weeks ago and its sweet as, here's a cage i did this week.

    Full custom mandrel bent cage. 1 7/8 tube






    very tight to the frame and pillars, barely even visible
    as you look in the door,


    maximum visibility for the driver, cage tight against the roof
    and pillars.




    large floor plates welded to three different planes
    to spread the load for maximum strength.


    large front floor plates and some weld shots.




    "Racing is life. Everything else that happens before or after is just waiting." ~Steve McQueen [Le Mans -1970]

  • #2
    Veteran drift kid's Avatar
    Join Date
    Dec 2008
    Name
    Ben
    State
    NSW
    Location
    Glossodia
    Country
    Australia
    Posts
    2,891

    Default

    top work mate, looks excellent.

  • #3
    Moderator Sam-Q's Avatar
    Join Date
    Dec 2008
    Name
    Sam
    State
    VIC
    Location
    Endeavour Hills
    Country
    Australia
    Posts
    4,234

    Default

    great job
    My website: SQ Engineering - 4AGE and 3SGE upgrade/replacement parts

    - SQ Engineering on facebook -

    Please e-mail to contact me instead of sending a private message on here.

  • #4
    Gone
    Join Date
    Dec 2008
    Name
    Joel
    State
    NSW
    Location
    Picton
    Country
    Australia
    Posts
    4,042

    Default

    nice welding!

  • #5
    Veteran Jonny Rochester's Avatar
    Join Date
    Dec 2008
    Name
    Jonathan
    State
    TAS
    Location
    Hobart
    Country
    Australia
    Posts
    2,654

    Default

    I would be interested in a picture of your bending machine, and the mandrel dies etc. Do you just have the mandrels for roll cage tube or a whole range of sizes? These machines can cost heaps.

  • #6
    性交を愛する marvis's Avatar
    Join Date
    Dec 2008
    Name
    marvis
    State
    QLD
    Location
    Lower Brisbane
    Country
    Australia
    Posts
    7,815

    Default

    What car is that in?
    Quote Originally Posted by trikzlane View Post
    I love streeting, Lowdown cars and watching the world unwind by every word Marv types.
    Quote Originally Posted by keiichi View Post
    dont you get raped by the police everywhere you go?

  • #7
    Senior Member 20v ae71's Avatar
    Join Date
    Dec 2008
    Name
    Dillon
    State
    SA
    Location
    Campbelltown
    Country
    Australia
    Posts
    168

    Default

    some great work there! good to see more people getting into this kinda thing
    how much do you charge? and where are you?

  • #8

    Default

    thanks guys, im based in ireland so i doubt id be any good to you guys, just thaught youd like to see as i see people asking for cage pics and info.

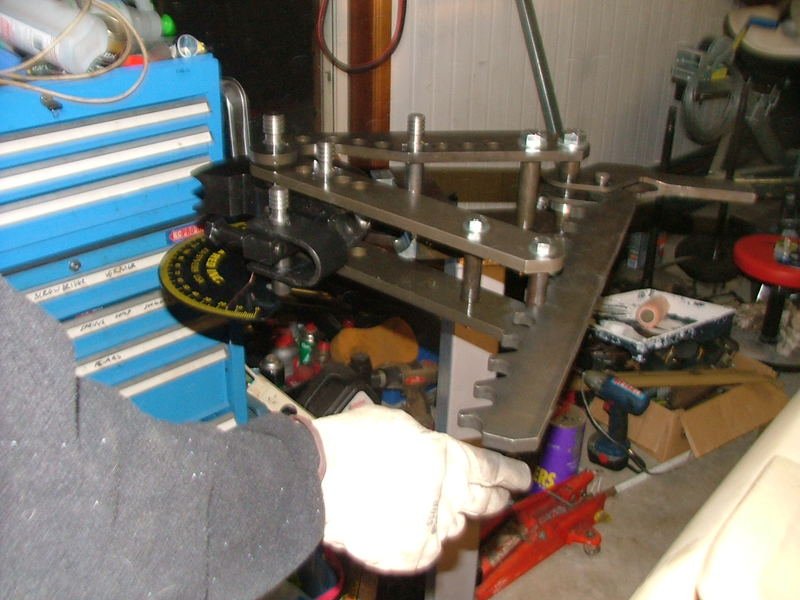

    its a jd2 manual benders, i only have two dies at the moment, 1 1/2 and 1 7/8. main sizes in tube for cages. you can get all size dies, dies for square too. but at 350-450 us dollars each itll be a while till i can get a few more.
