Such a good engine! As you can see it was a VERY anal build, making sure everything was spot on and done correctly!
Good NA build! or add some rods from Toxin and throw a T28 on it and it will love life.
7AGE Engine Package. Motor + Gearbox + ECU. HAWWWWT STUFF
Hey guys, my motor setup is up for sale!
For those who don't know about 7AGE's, its the same mounting/running hardware as a normal 4age. bolt in job. just displacement is now 1.8 and has a gang of torque!
The motor has been on the dyno just after it was built made a healthy 110whp. its more about the torque these motors produce rather than the power figure. watch!
PS. can take you for a drive in it, as the car is still driving etc.. MASSIVE WIN, never get that chance.
Location: Brisbane, QLD
7AGE Engine Package. Motor + Gearbox + ECU

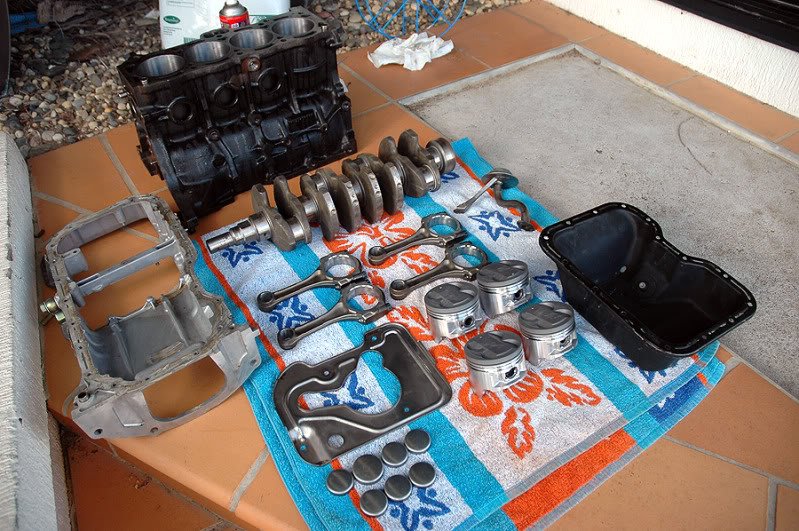

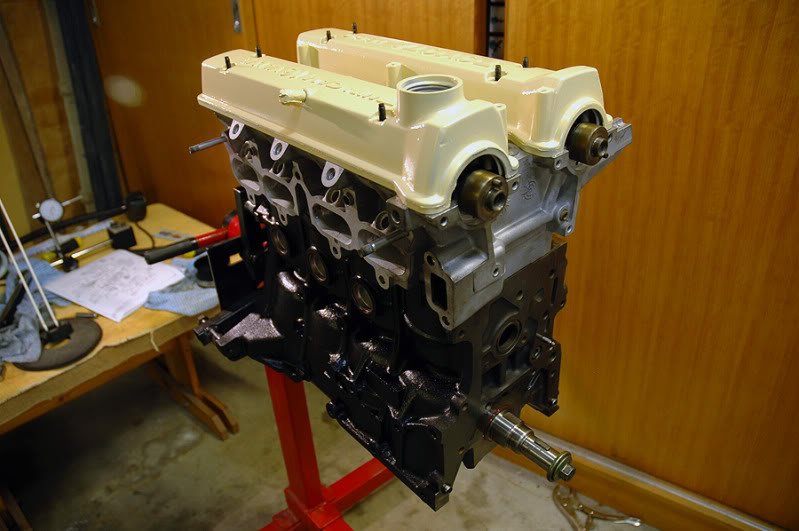

-Custom 7AGE Motor (7afe bottom end with big-port 4age head) (not even 2 years old)

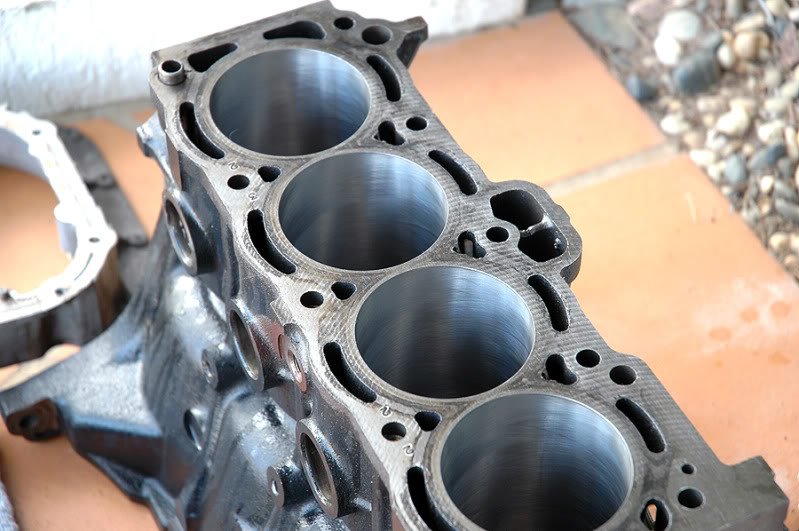

-7AFE Bottom end - Honed, 0.5mm Oversize bores.
-Standard crank (mid-sized)
-Kings Main bearings
-Standard Conrods (Resized + new bolts)
-ACL Con-rod bearings

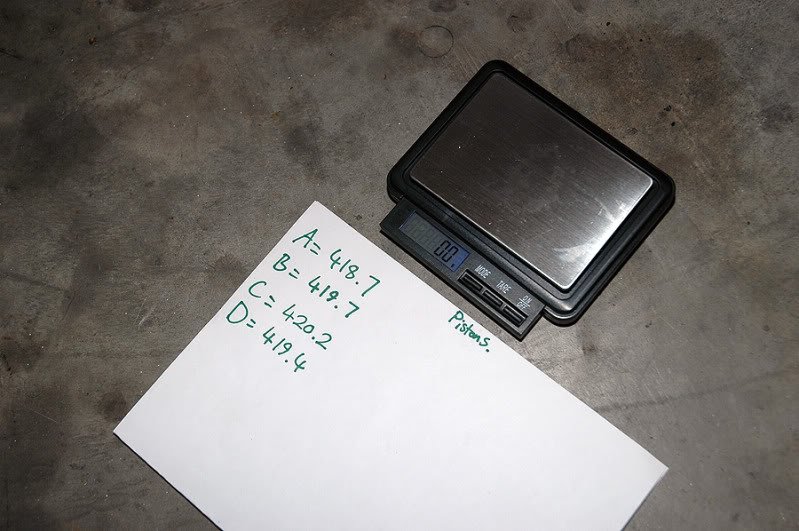

-Hypatech Small-port 4AGE Pistons 0.5mm Oversized. (new)
-Hastings Piston Rings
-New standard thickness 4AGE Toyota head gasket

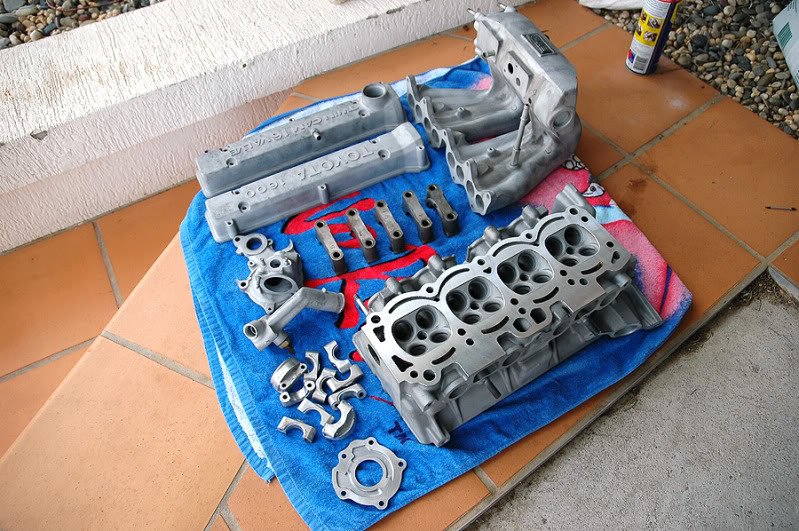

-Standard Big-port 4AGE Head, with some mild porting.
-New Head-bolts
-4AC Flywheel with new bolts
-Apexi Air Intake
-TRD style extractors
-Compression ratio: 11.4:1
-Standard 4AGE ECU (been run up on dyno, safe as houses)
-JDM T50 gearbox (good nick! redline oil in it)
-Extreme Heavy duty clutch in good nick!
-JDM AE86 Tailshaft
Notes:
-Great reliable motor, still has alot of the factory goodies, Coldstart etc.
-BOLT IN JOB!!! VALUEEEEE
-Id probably say the motor has done 30,000 since being built! i cant give a definite answer as my speedo doesn't work in the car.
-Took some heart when we built this, new seals throughout etc. not a throw together!
-Bottom end was put together by TOXIN off these forums, we went to great detail in the build. you can find it in this thread:
Pricing: $3,000.00
Pics:
Last edited by Robo86; 8th November 2011 at 11:35 AM.
Such a good engine! As you can see it was a VERY anal build, making sure everything was spot on and done correctly!
Good NA build! or add some rods from Toxin and throw a T28 on it and it will love life.
Just compression tested this bad boy, great results.
-185/190 across the board!
Price Drop. $2800. this is too cheap!
-motor
-box with hd clutch
-ecu + engine loom
-JDM tailshaft
-starter/alternator/aircon
