Thread: JDM T series rear caliper rebuild

  1. #1
    Senior Member sheppo's Avatar
    Join Date
    Sep 2011
    Name
    Karl
    State
    SA
    Location
    Hallett Cove
    Country
    Australia
    Posts
    203

    Default JDM T series rear caliper rebuild


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Car - KE70

    motor / part in question - Rear Brake Calipers

    problem - Seals split and need replacing

    occurs/started when (if applicable)- when I pulled the diff apart after it arrived from qld

    personal situation (if applicable)- confused?

    So I recently acquired a t series LSD disc to disc rear end. I'm in the process of cleaning it up and replacing brake parts before fitting it to the car.
    After pulling the calipers off the diff I've discovered a couple of the seals have split and need replacing.
    Dave from AJPS has said that he can supply me with new seal kits. I've pulled the main piston out of the calipers but can't see how the main seal is kept in? There seems to be a metal ring holding it in place but there it doesn't seem to be a circlip?
    Just wondering if anyone has pulled these apart before and has any advice in how to go about this?

  • #2
    Senior Member dansomerville's Avatar
    Join Date
    Jun 2011
    Name
    Daniel
    State
    QLD
    Location
    Townsville
    Country
    Australia
    Posts
    246

    Default

    I did mine with seal kits from Dave not to long ago.

    There is no circlip for the seals, just a metal ring that holds them in.
    The ring has a split In it, so it's not a complete circle.
    I just used a small screw driver to pop and twist it out, and the same for putting back in, just being careful not damage the seal itself.

    The big issue with the rear calipers is that thread that the piston screws on to.
    There's a circlip in there that requires you to compress the spring to get it back in. And because that thread is an odd pitch you can try and try like I did but you need a special tool from Toyota to put it back in.

    I got the shits and took them around to heaps of brakes places and they all said they had no idea how they'd put them back together, so I ordered the tool from Toyota, lucky enough they had one in stock, still took a month to get to me.

    This probably isn't all that clear, sorry. Get a hold of the workshop manual and it makes it much clearer.

  • #3
    Veteran Rice86's Avatar
    Join Date
    Jan 2009
    Name
    Richard
    State
    NSW
    Location
    Liverpool
    Country
    Australia
    Posts
    1,853

    Default

    the piston re-install pissed me off, I didn't rebuild mine which i should of had at the time..

    But anyways I had to take the piston out to inspect wtf was going on as it wouldn't screw in while doing a brake pad change, it is possible to screw the piston back without some special tool just FYI as I did it on my own, just a lot of rage and swearing and force once it screws onto the thread it should screw in again as normal..
    dose

  • #4
    Senior Member dansomerville's Avatar
    Join Date
    Jun 2011
    Name
    Daniel
    State
    QLD
    Location
    Townsville
    Country
    Australia
    Posts
    246

    Default

    The piston isn't the hard part to put back in, it should just screw down on to that thread.

    You need the tool when you take them right apart, you have to compress that spring to get a circlip back in inside the housing. It's gay as aids.

  • #5
    Senior Member sheppo's Avatar
    Join Date
    Sep 2011
    Name
    Karl
    State
    SA
    Location
    Hallett Cove
    Country
    Australia
    Posts
    203

    Default

    Gay! Well I guess I'm gonna have to try and do it with out the special tool!!
    Thanks for the advice fellas I'll let you know how I go!!

  • #6
    Member geoff's Avatar
    Join Date
    Mar 2009
    Name
    Geoff
    State
    VIC
    Location
    Glen Waverley
    Country
    Australia
    Posts
    75

    Default

    Quote Originally Posted by dansomerville View Post
    The piston isn't the hard part to put back in, it should just screw down on to that thread.

    You need the tool when you take them right apart, you have to compress that spring to get a circlip back in inside the housing. It's gay as aids.
    Haven't done it in an ae86 but have done it in an aw11. A quick search on toyodiy says the spring and retainer are the same part number.

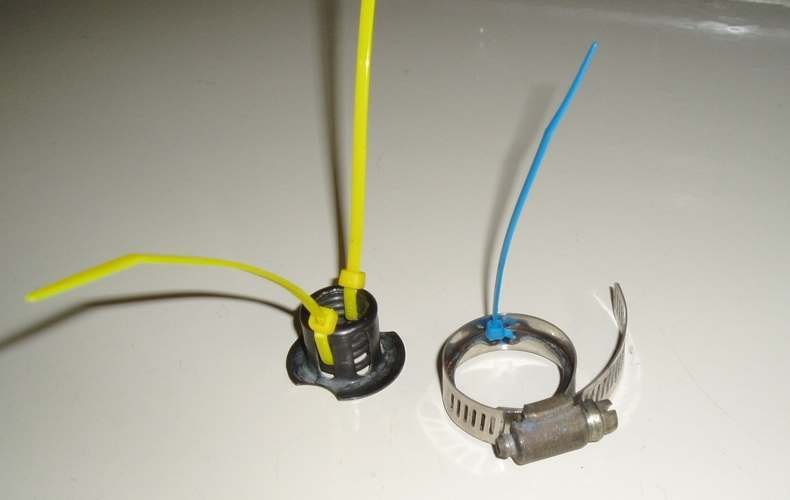

    I did it without the sst. You can compress the spring using a cable tie and then after getting the circlip back in, cut the cable ties and fish them out with pliers. Had to resort to this because toyota said it'd take a month to get the sst in.
