    hey guys, iv been building this adm sprinter for about a year and a half now, never ending project with the usual headaches and speed bumps along the way keeping it from getting finished. and aprenticeship wages didnt help
    all of the work has been done by myself and a couple of mates pitching in here and there to help me out
    but anyway ill post some pics for u all
    sorry for the amount, its from another members rides forum i have going atm

    here u go!

    The scary new start, Ground up build!
    Sprinter, 83, stock as a rock:



    to start. front end:
    Jdm sway bar 25mm



    New nolathane bushes all round

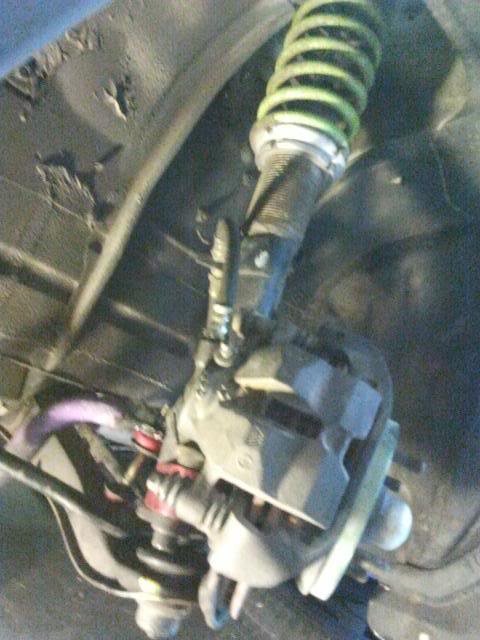

    Jdm custom coilover fronts
    Tokido inserts
    Unknown jap camber tops
    Unknown spring rate, guess atleast 12kgs or so, all i no is there stiff as fuck
    25mm bolt on spacer
    Jdm brakes
    RCA's, also soon to have ajustable LCA's




    Jdm rear diff, disk rear end
    TRD tight 2way LSD
    TRD Blue shocks
    TRD springs, once again unknown spring rate but stiff as fuck also
    AJPS panhardrod



    How it sat on my Hayashi Streets

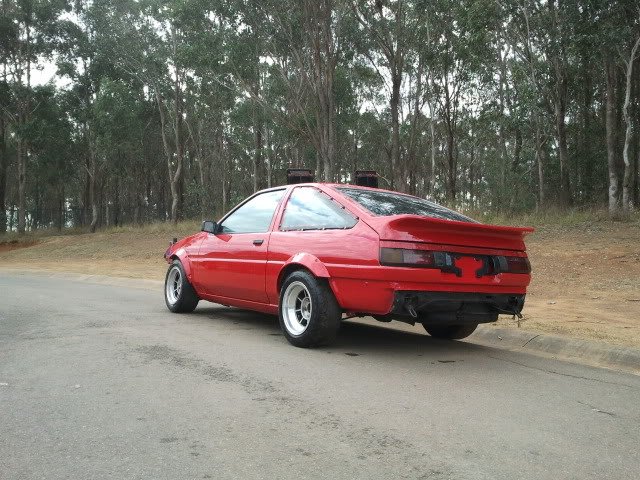

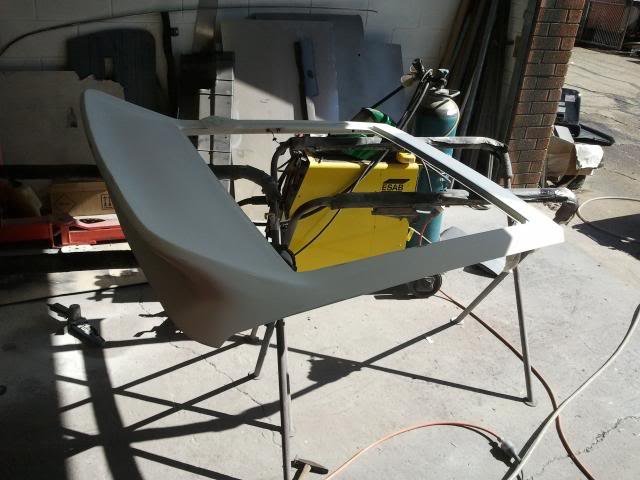

    Ducktail wing also



    The 4ac, excelent condition



    Body work starts!

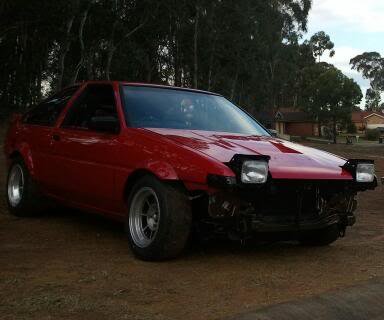

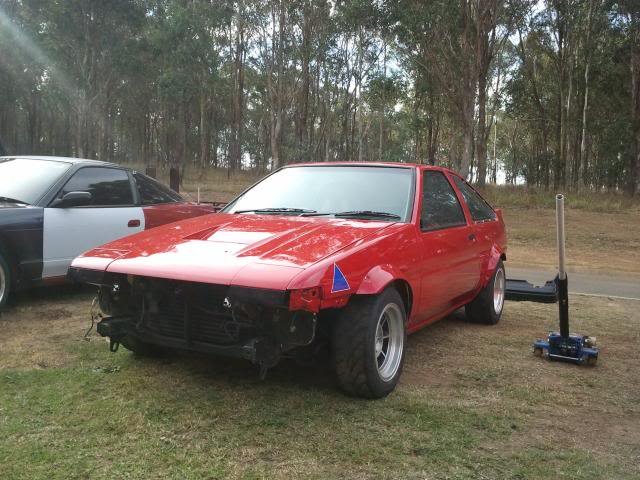

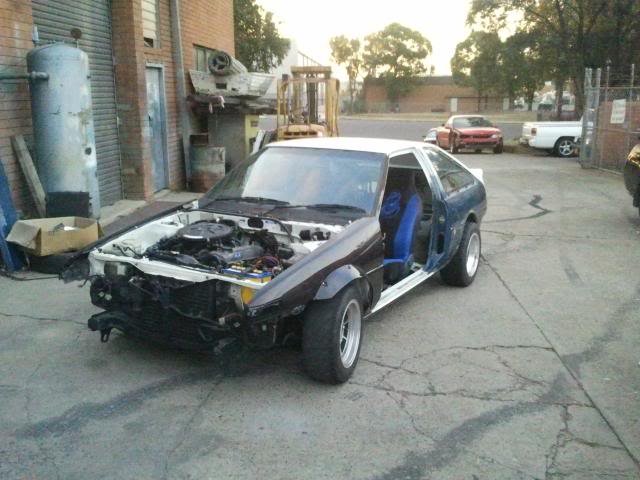

    Trueno front end from the track car

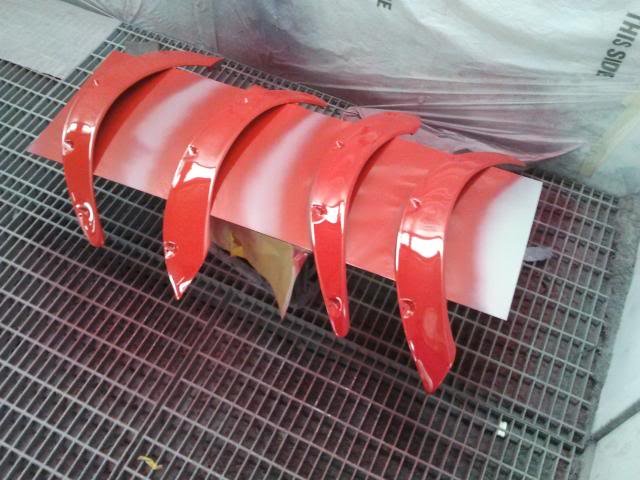

    Bolt on flares fitted

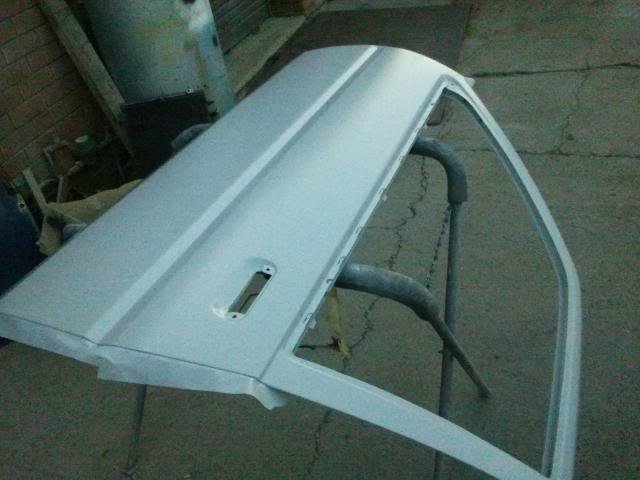

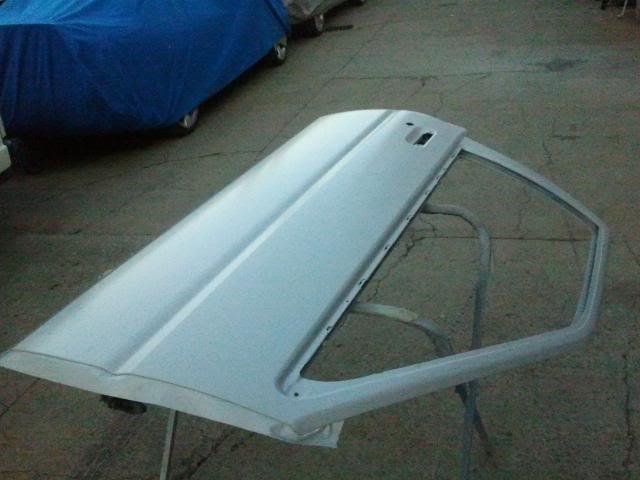

    Doors fully paint stripped, repaired and hifilled!




    Replaced the passanger quater as it was badly damaged as he was a wet slide king

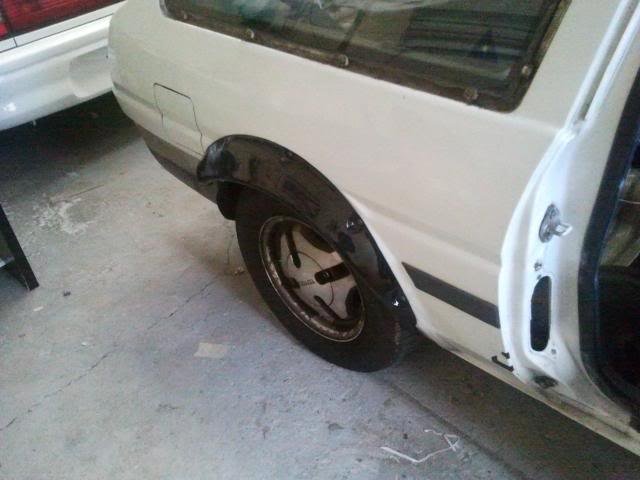

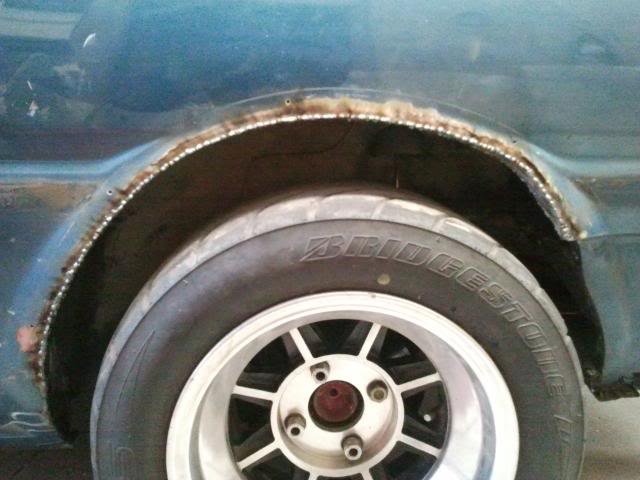

    Also cut and welded for flares

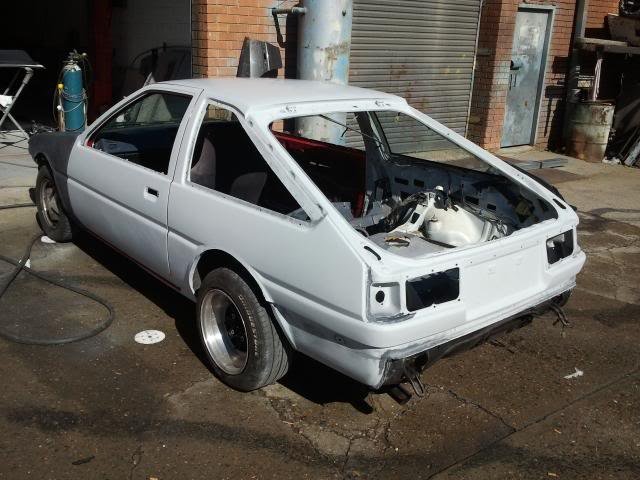

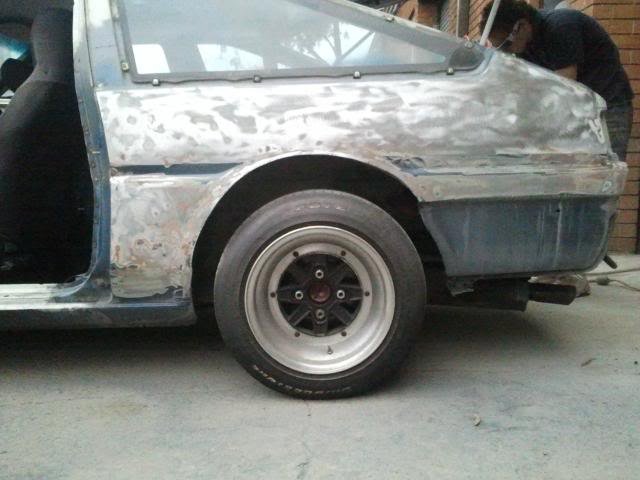

    Paint stripping stage, getting ready for repair






    Lights mounted and working

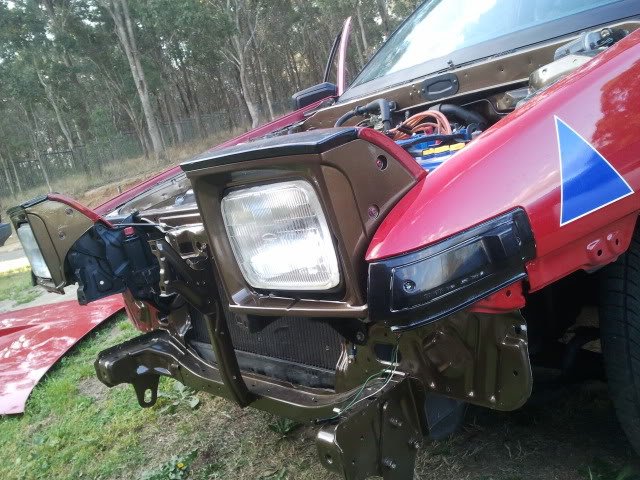

    Finally at the paint stage, edging out
    Custom 2pac Red, Based off a Honda Red, with a coat of clear over the top for more depth and shine

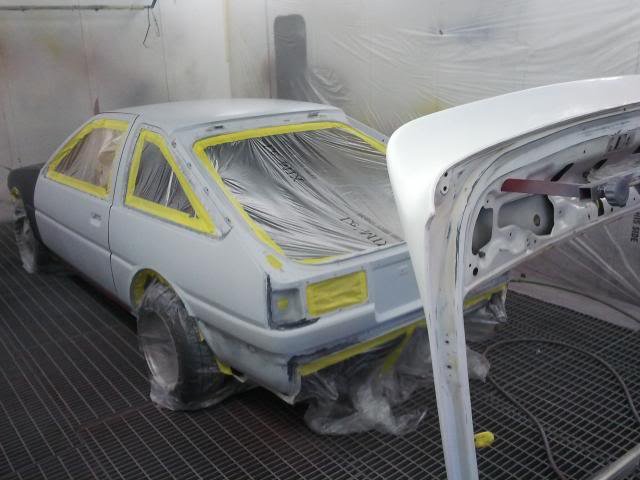

    Prep stage, outer rubbed and ready for a squrt

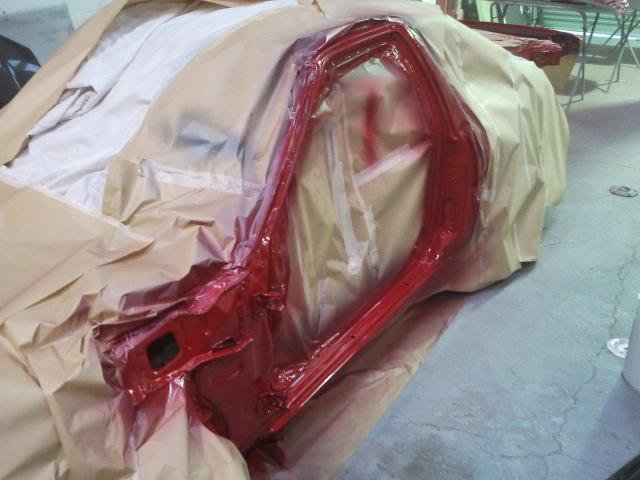

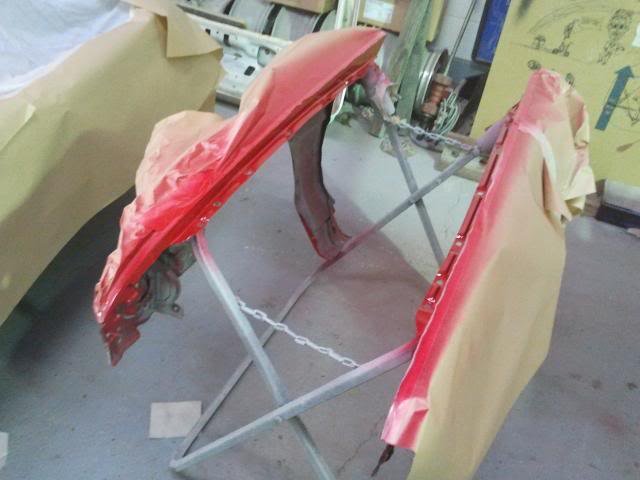

    Painting stage

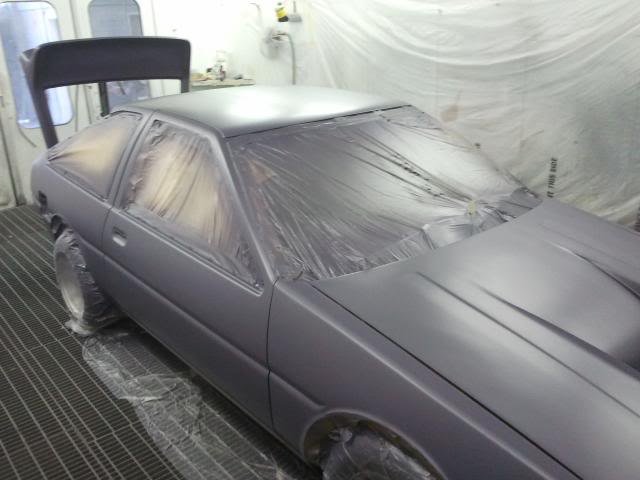

    Ground coat

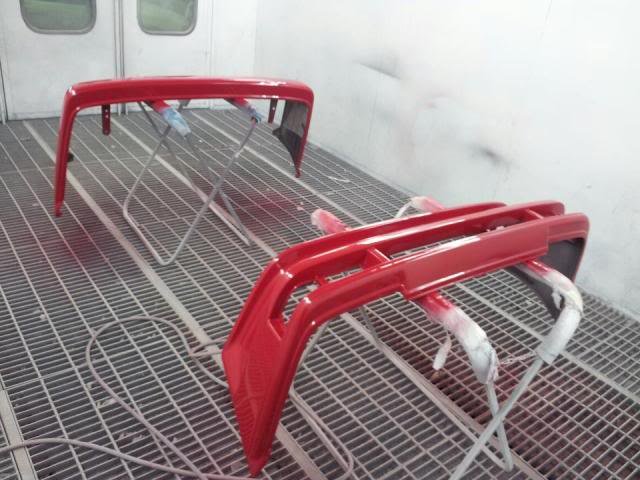

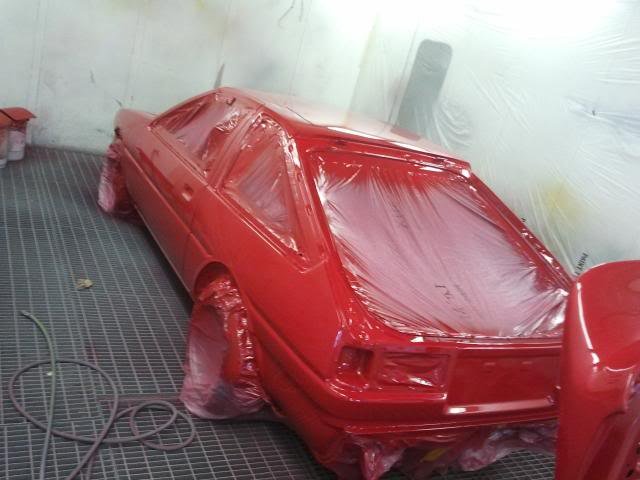

    All done!
    3 coats of colour and Clear as a finally coat

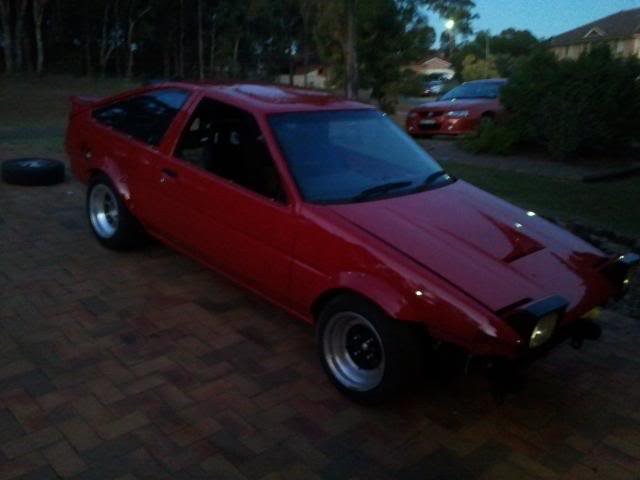

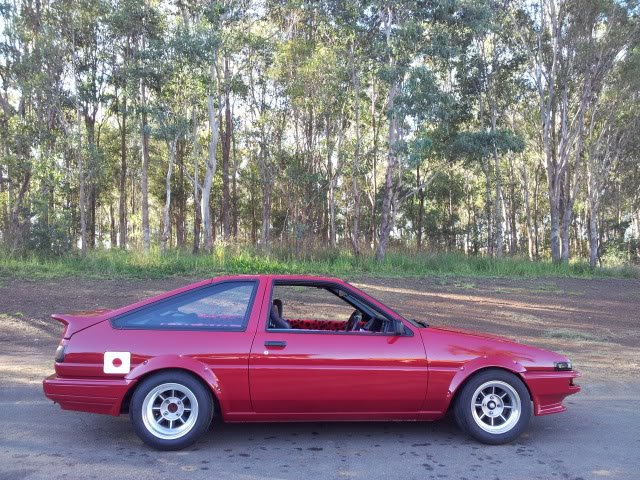

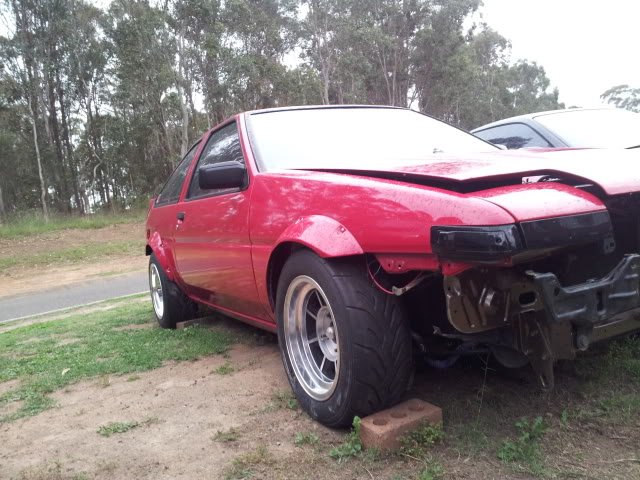

    Finally at home the first day

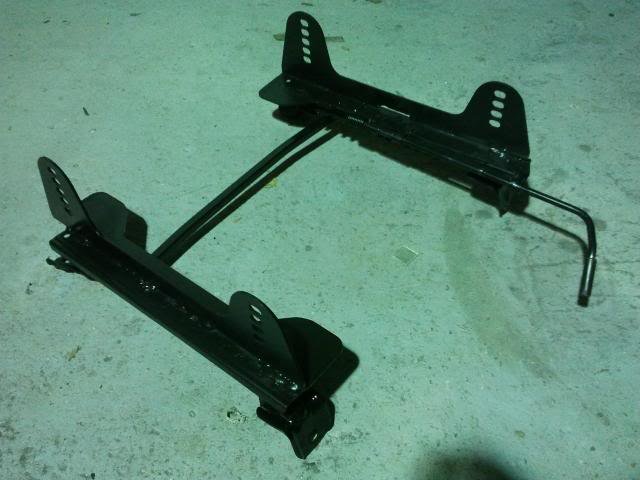

    Seat rail finished

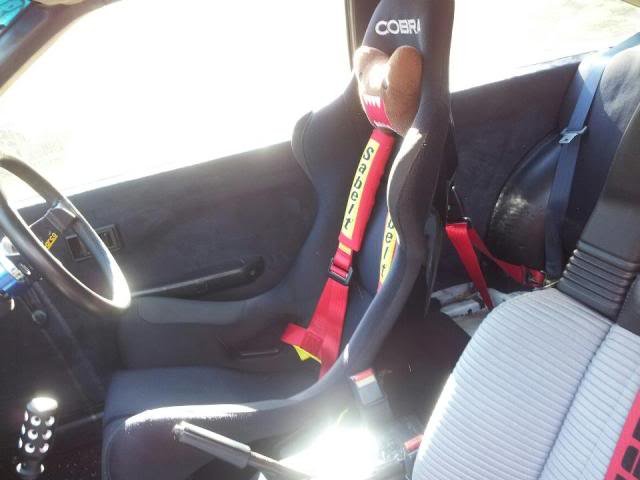

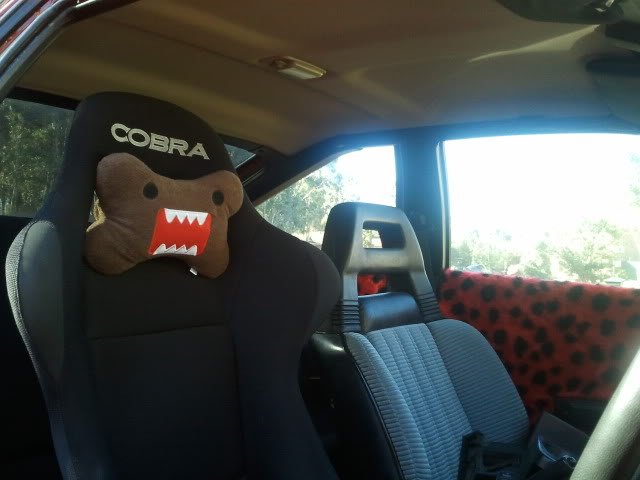

    Carbon fiber Cobra

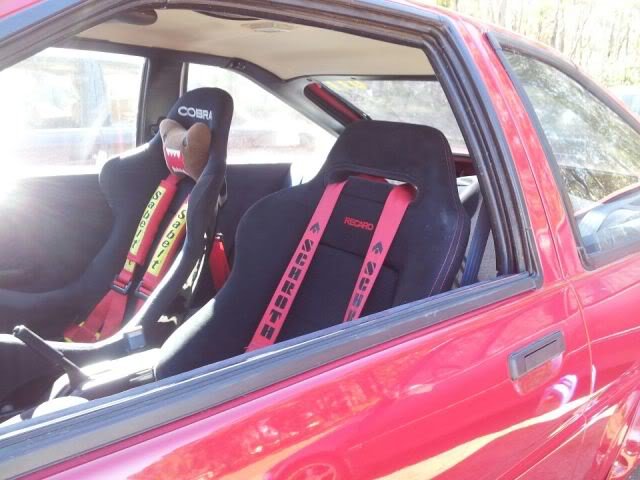

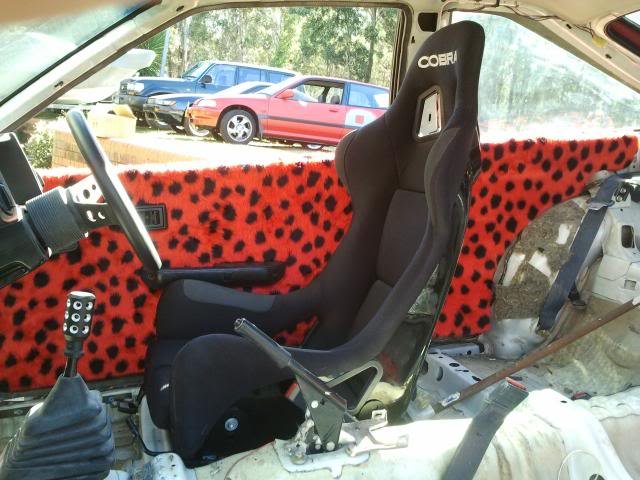

    getting the interior done


    Jdm dash cluster

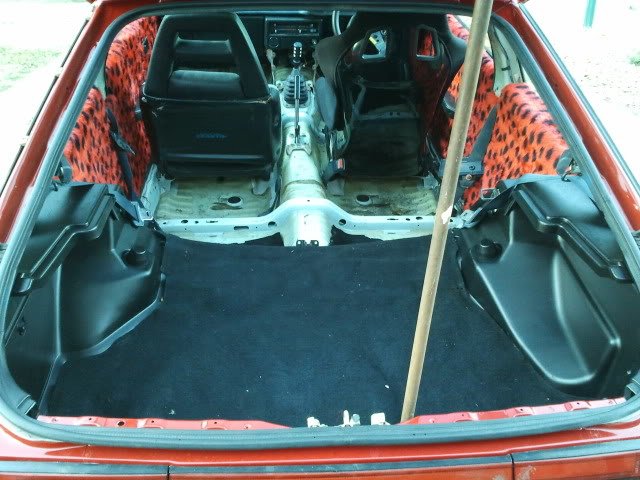

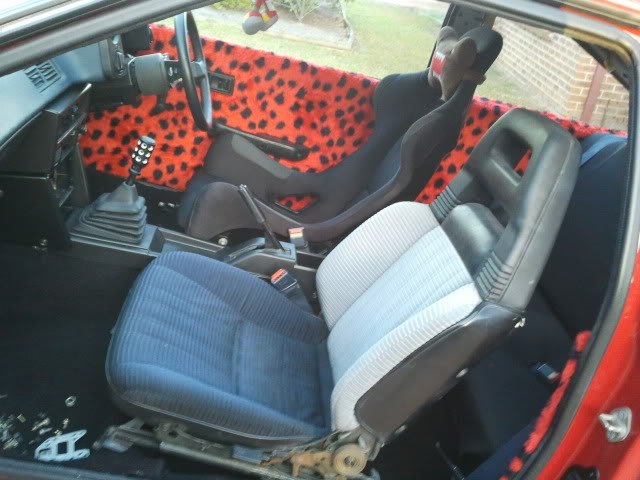

    Interior pretty much finished for now

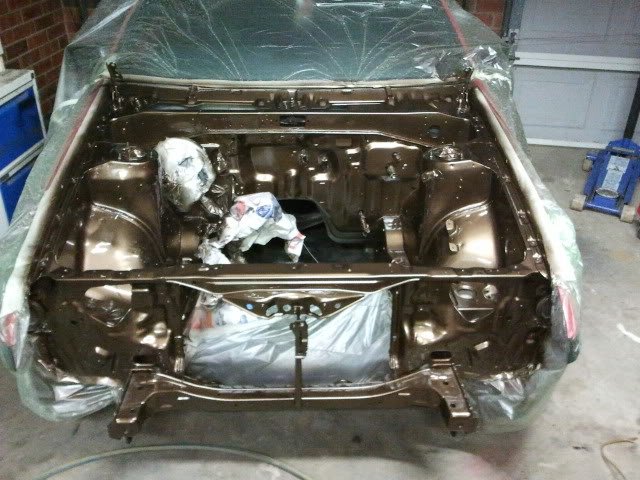

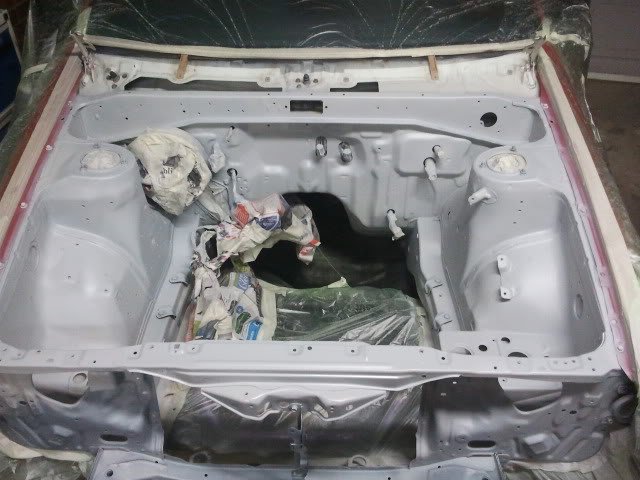

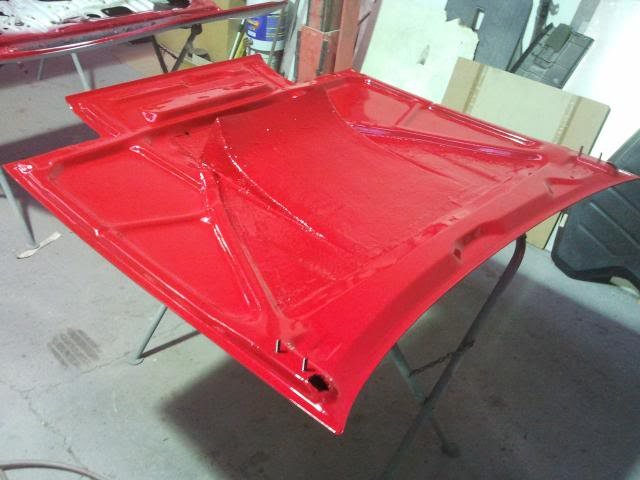

    Engine bay prept, masked and ready



    2 thin coats of primer to seel it off



    Basecoat and clear, all finished off










    Painting all the brack, clutch and fuel lines

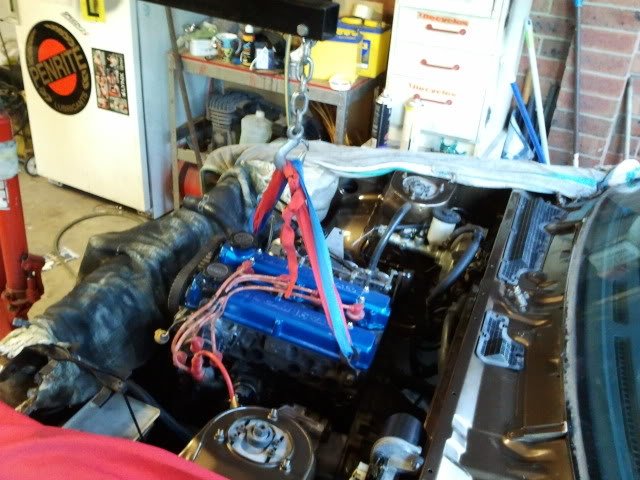

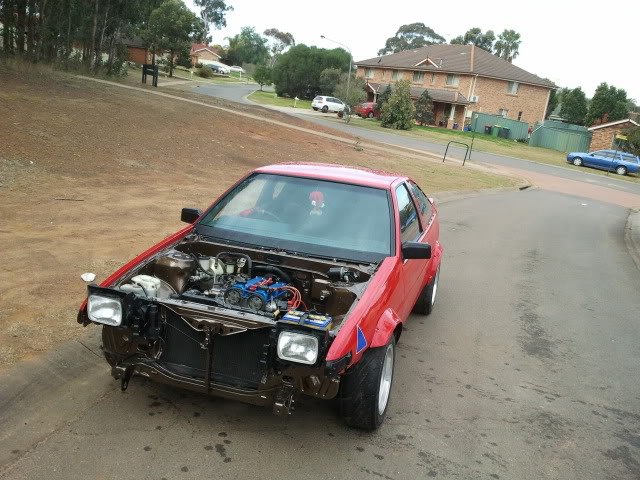

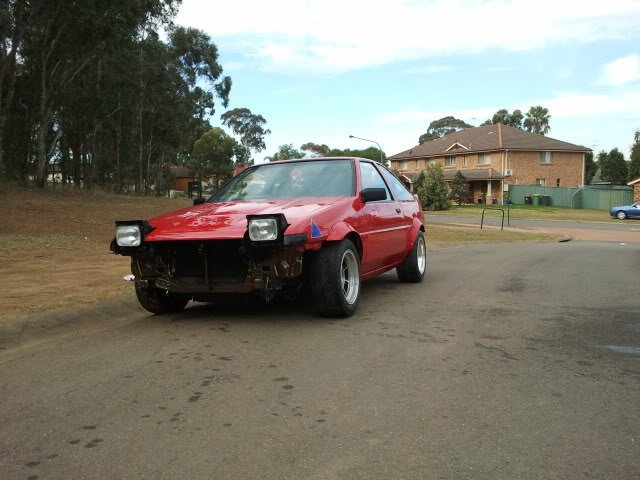

    Engine ready to drop in









    Head lights painted black. Coz I can

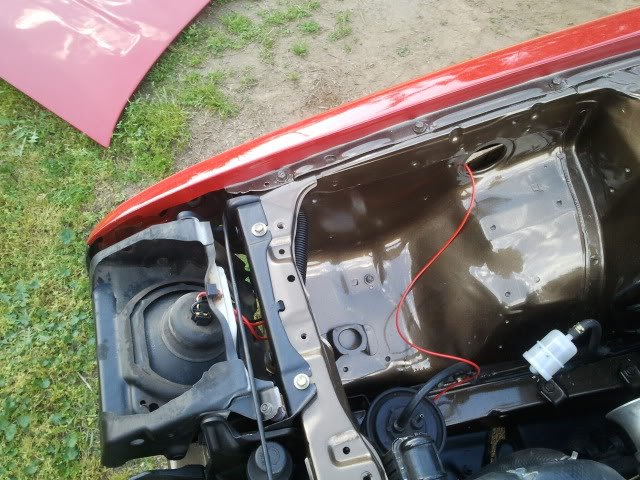

    headlight wiring

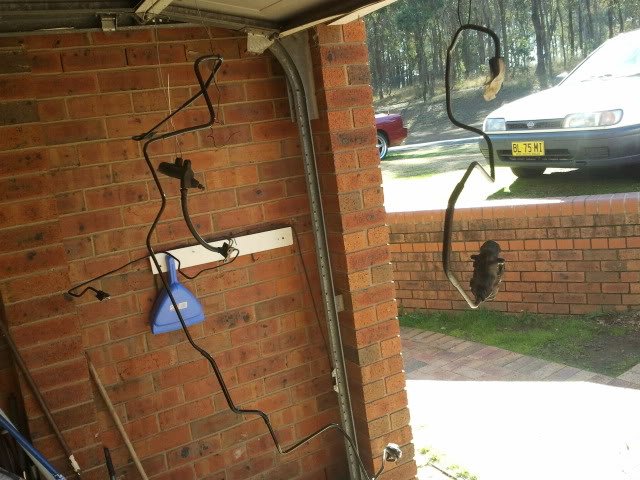

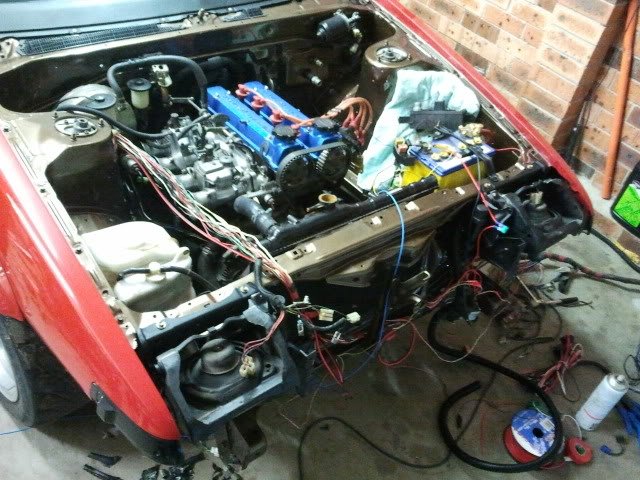

    Wiring done, most all hidden, all brand new, but left open atm for when we the engine is ready to start we can test it all wires if there is a problem firing






    One wire for fuel pump



    Alternator, and water temp

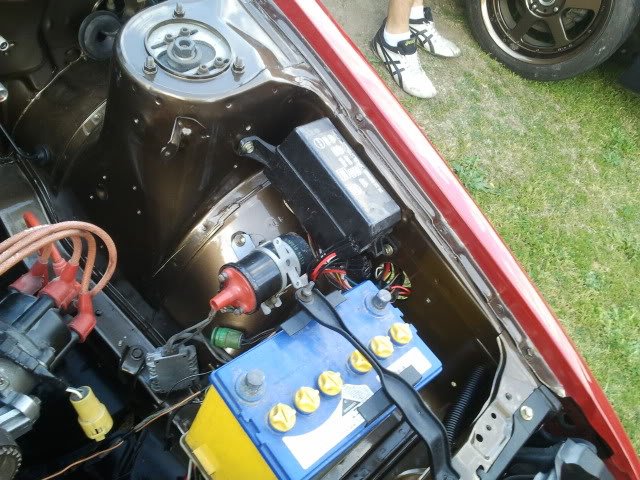

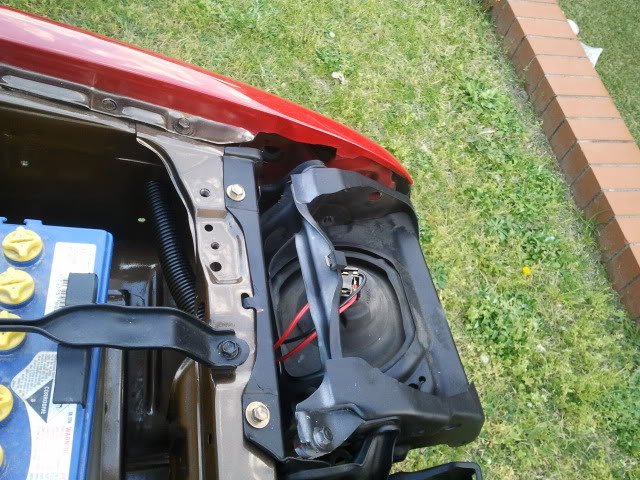

    Decided to leave thw battery in the front, easy to get to



    Glad I dont do this shit lol
    Will be cleaned up once it starts



    Wires and relays for trueno lights



    Felt like painting the light surrounds

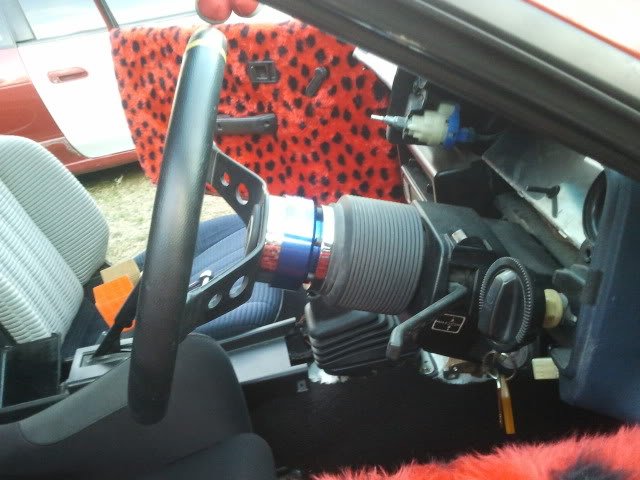

    Sparco removeble boss kit, nice and close



    Restoring begins!

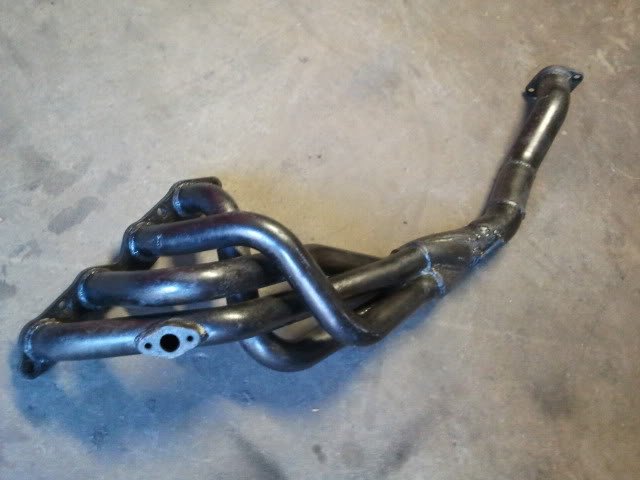

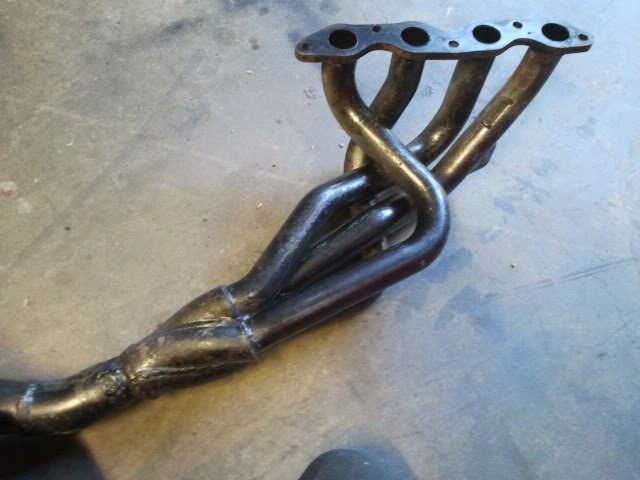

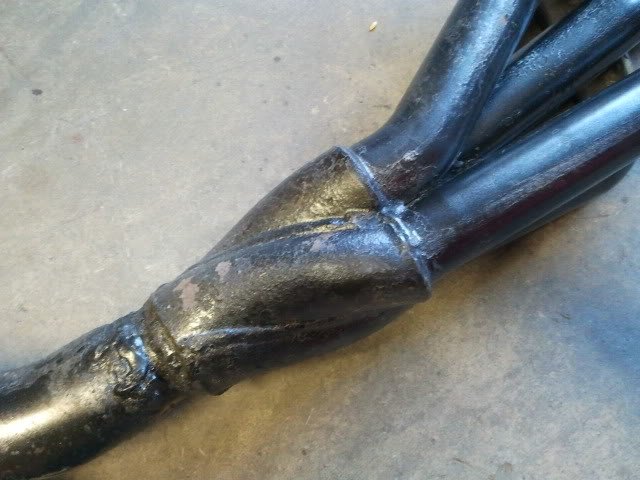

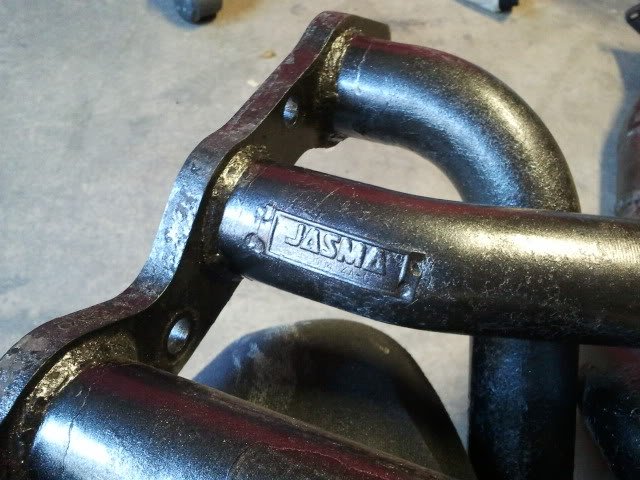

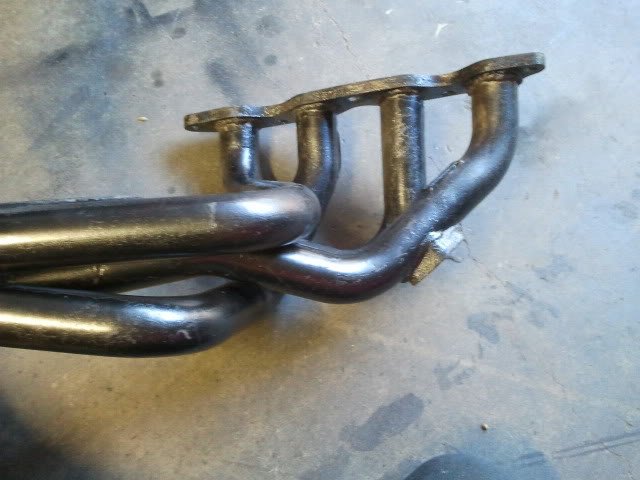

    Picked up my jap Jasma equal length 4 to 1 extracters







    New jasma exhaust, 2 1/2" with 5zigen cannon, sounds nut

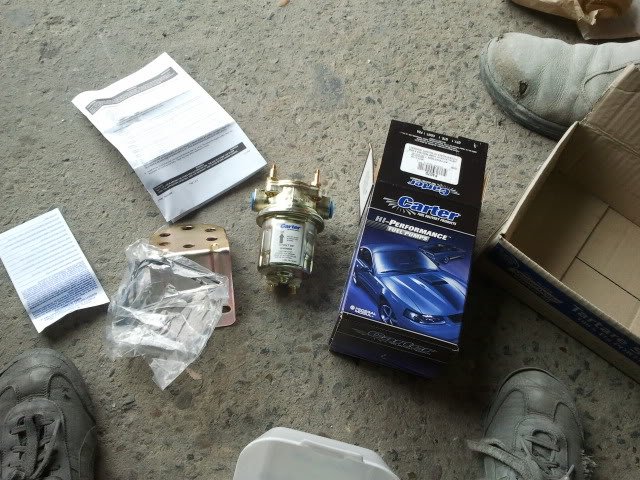

    Carter gold fuel pump

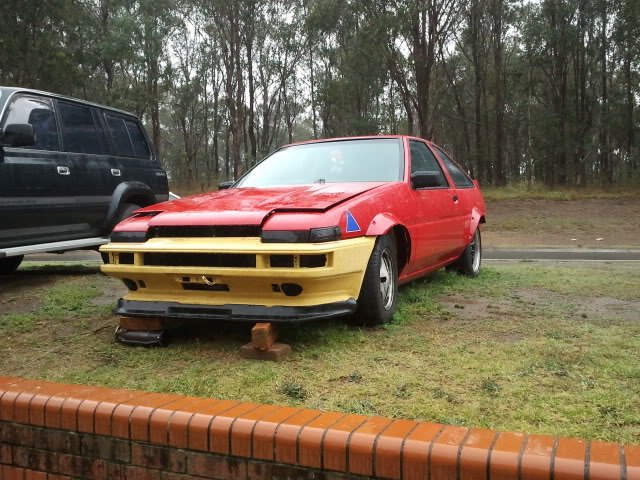

    Kouki front bar and lip, front lip.needs alot of work
    May just buy.a trd lip instead

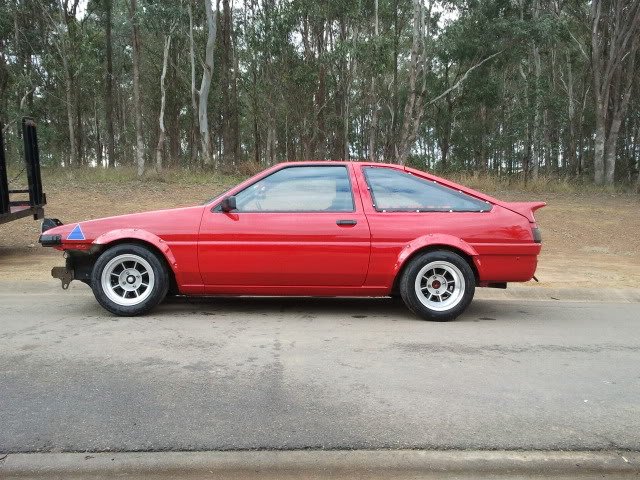

    Set of Yokahama Advans, still new only used once
    Managed to pick up for a good price
    195/60/14's



    Bonnet pins, and bonnet fitted today, sits nice with the bonnet lock actually working

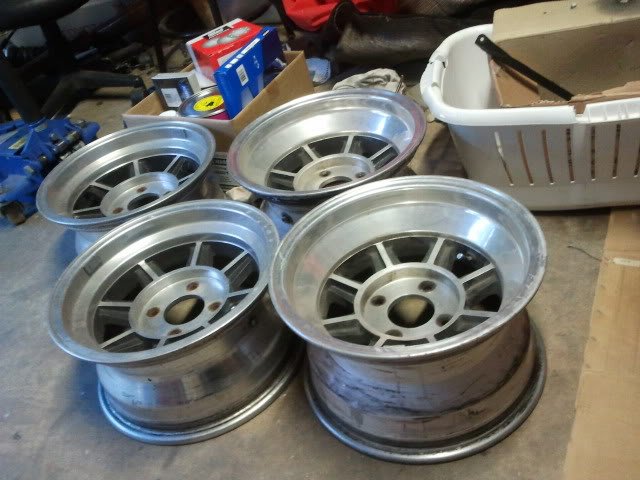

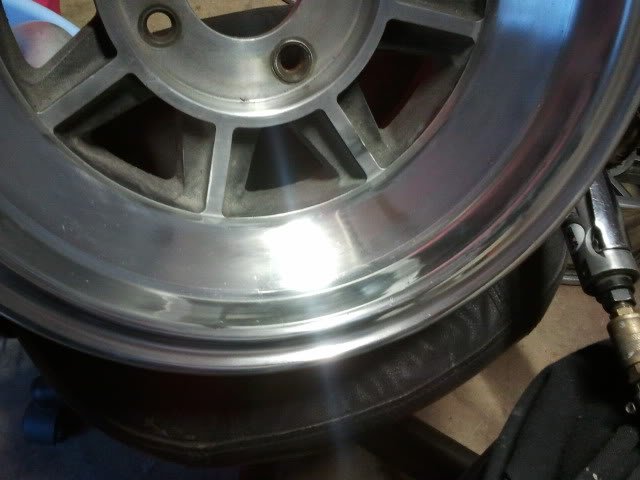

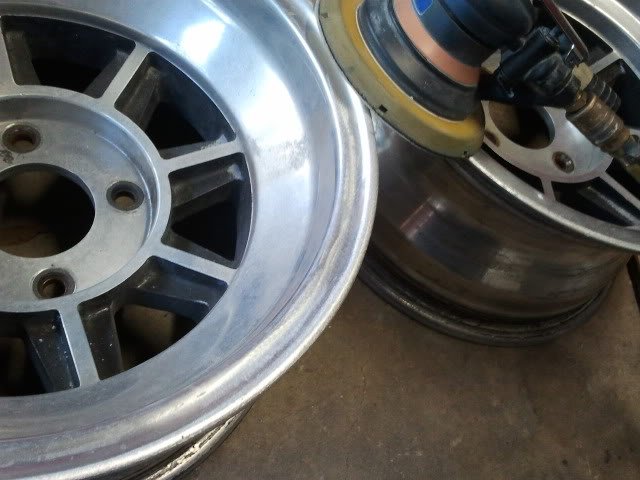

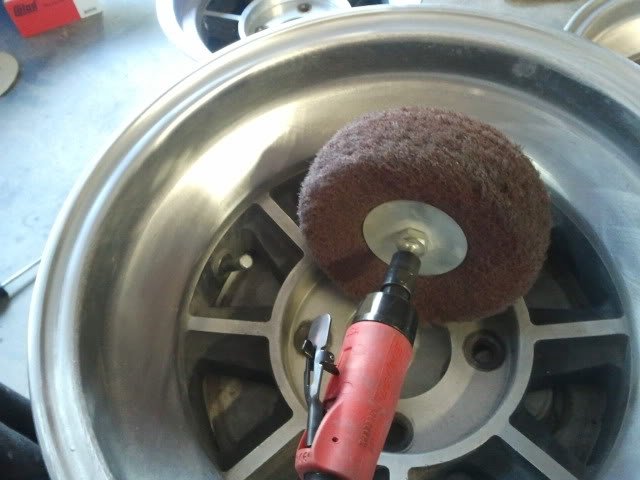

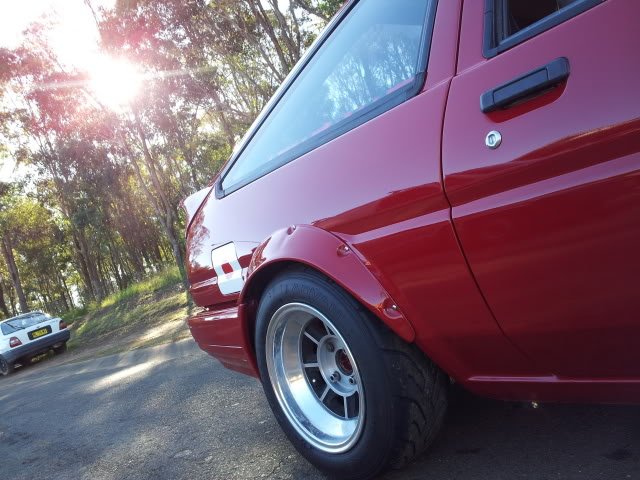

    Freshly polished Hayashis with the Yokahamas
    Fit nicely

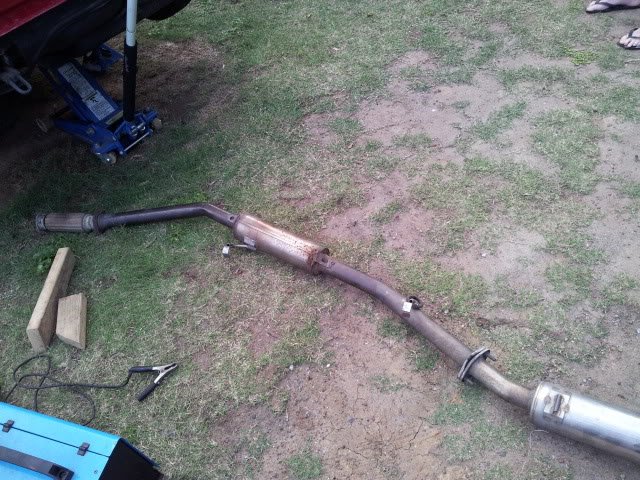

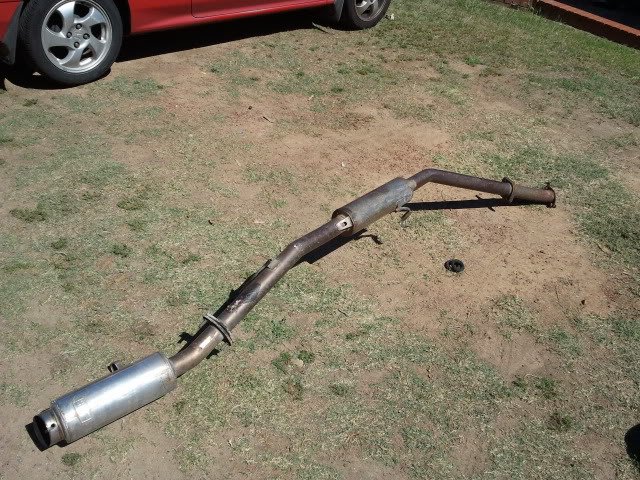

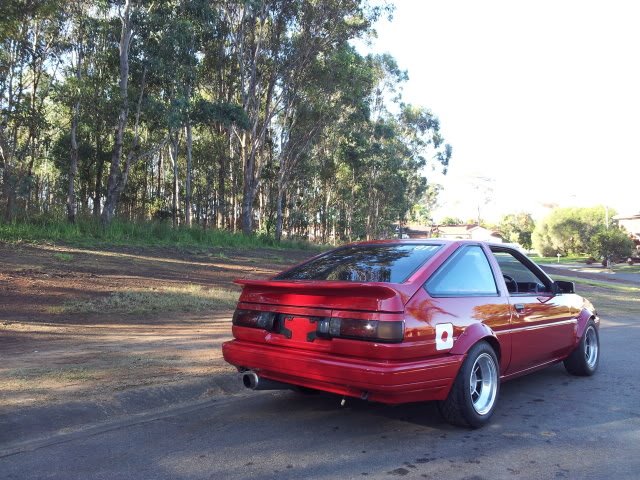

    Exhaust finished, added flex pipe yesterday as someone cut the cat out and mounted a dogey piece in, also shortend hangers to lift it, so.now sits nice and high and doesnt move at all

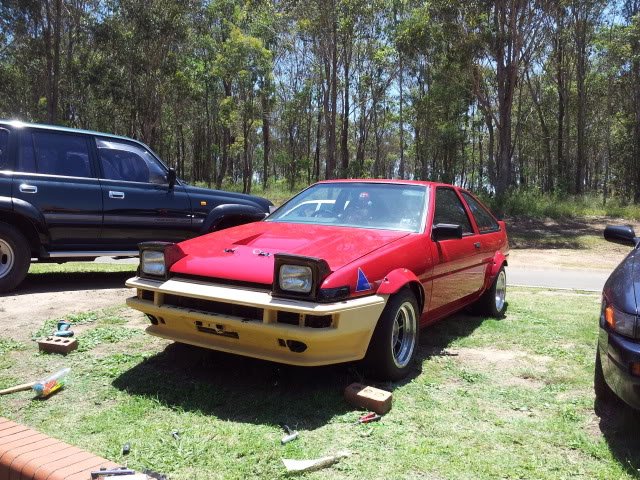

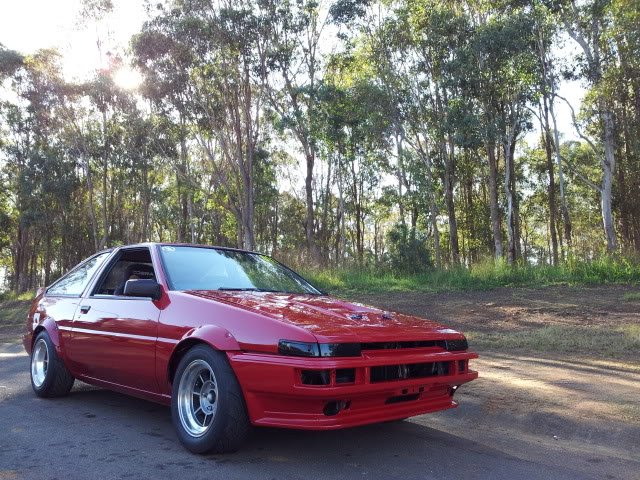

    Mounted front bar, beem to lazy to paint just yet lol



    Nice to see it of the front lawn!

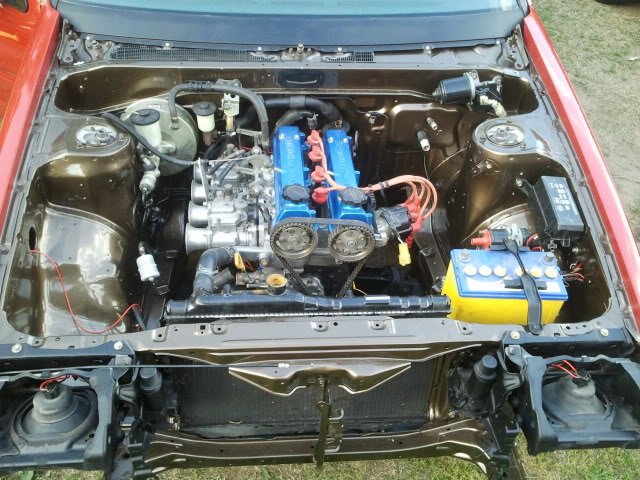

    Engine bay completed, wiring done and all hidden amd cleaned up and fuel lines finally sorted with new carter black and fuel reg





















    back from my europe tour and back on my feet ready to get back into the 86.

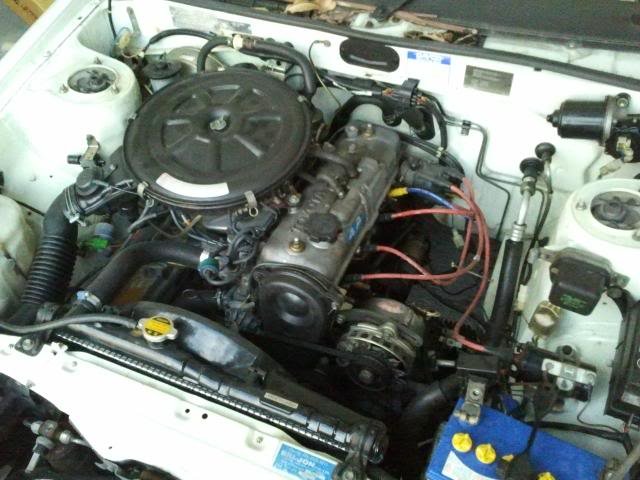

    Decided to pull the old 4age out and donate it to my mates nuts ke70, craving more power.
    Loved the N/A power, sound of 10,500rpm and the old school carbies but needed a change.

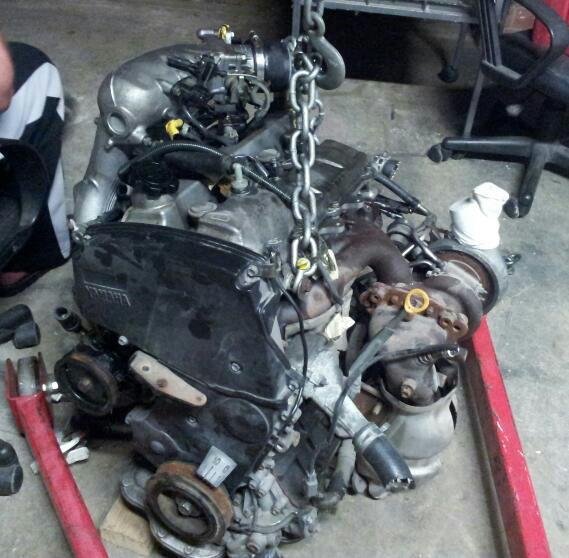

    So i have picked up a Gen4 3sgte to replace 4a

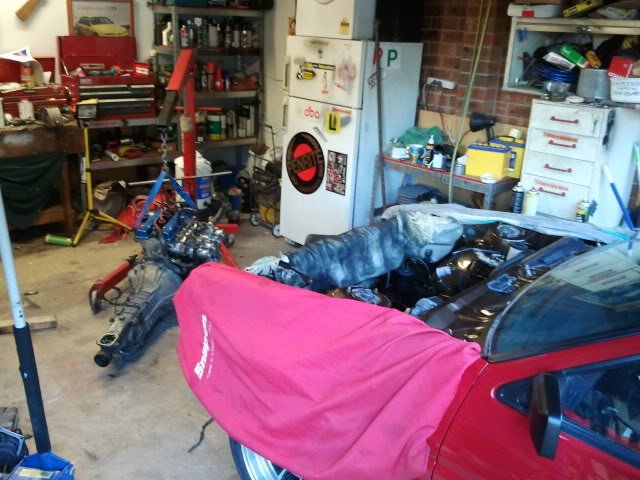

    Striping it down and going from there. Will be keeping internals stock as for now till i decide on more power.

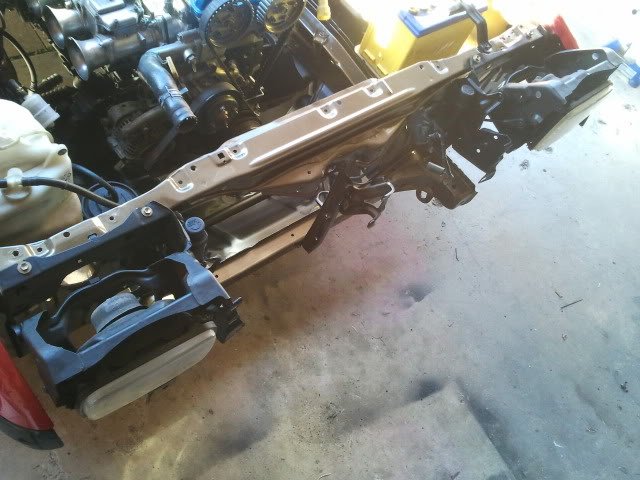

    There is a few little bits and pieces that needs to be fabbed up such as the drivers side engine mount, cooling system, intake and turbo manifold. Im sure there will be plenty more along the way!
    Grabbed two 2s mounts from an old corona from a wrecker, turns out it Bolts straight in besides 2 bolts on drivers side. So a plate will be made up.
    I have a W58 bell housing, for late model 5 speed supra box. Looking for a box atm!
    Also a Hilux diff, just need the mounts welded on.
    Will be running custom rear brake setup, back to 4 stud. Going to try keep the size of brakes to fit in 14's as i want to still run the Hayashis, but not going to hold my breath as i dought ill be able to with decent brakes.
    Few more plans here and there
    Will be alot to do but will try keep the updates coming!


    Finally decided to give in and get rid of the polka dots!

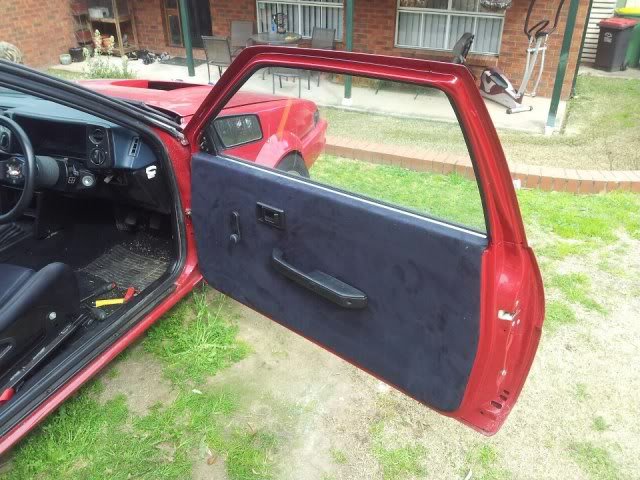

    black suede much nicer




    New recaro seat for passenger




    big mess

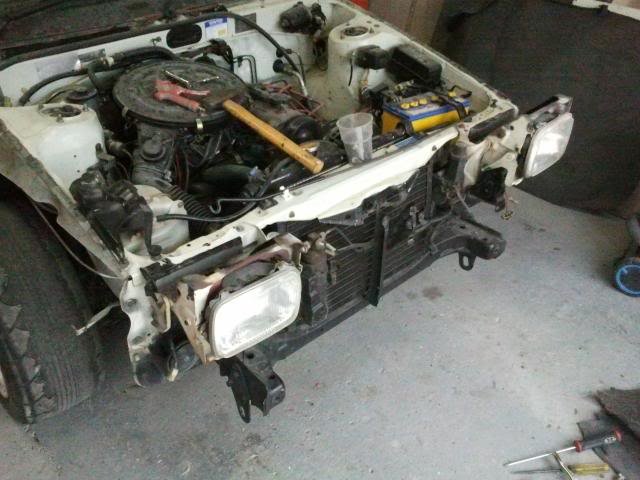

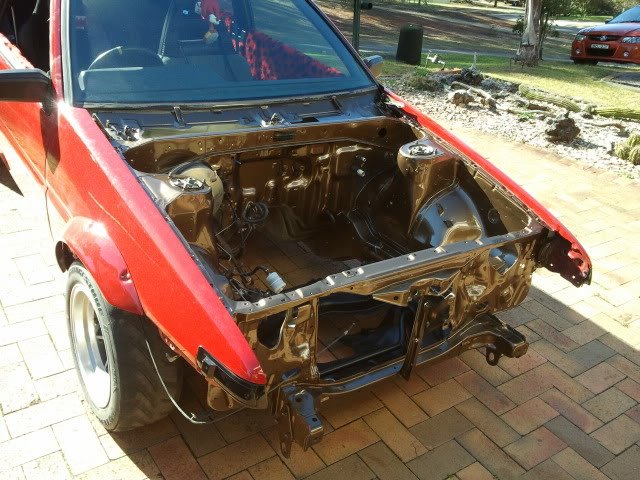

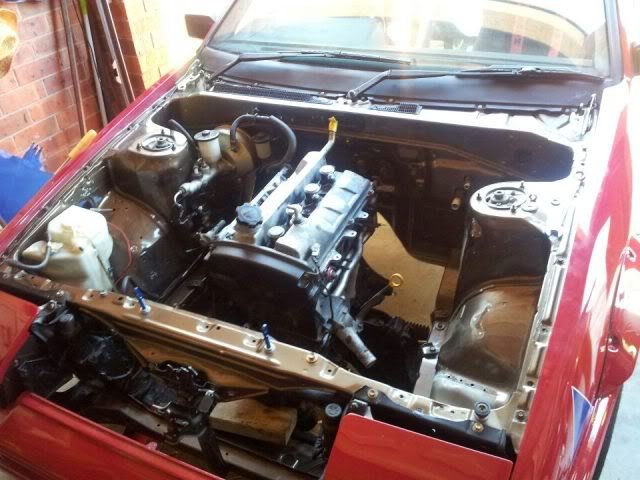

    striped down, first test fit
    sits a little high. hopefully by just changing the rocker cover will sort it out

    also shaving most the engine bay of any unnecessary holes, battery tray etc
    in progress atm.
    all wiring will be hidden aswell

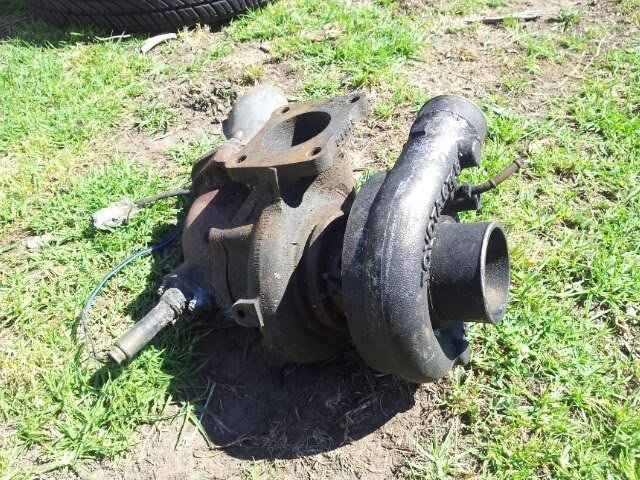

    picked up a ct26 7mgte turbo to use the rear housing for the 3s st26



    thats it for now guys
    hope u all like!!

    adam
