Thread: Blacktop starter motor on Westfield

  1. #1
    Junior Member Westie20v's Avatar
    Join Date
    Nov 2012
    Name
    Vince
    State
    Western Australia
    Location
    Perth
    Country
    Australia
    Posts
    3

    Default Blacktop starter motor on Westfield


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Hello, new member, first post, hoping for some advice on sourcing parts and best option.

    I've recently acquired a Westfield with a 20v, which is an awesome combination. As the starter motor sits under the extractors however it suffers from heat and the solinoid sticks.

    Keen for some advice please on:

    - best starter motor option, replacement OE or aftermarket option
    - best value supplier/s
    - recommendations on needing to heat shield etc

    Thanks
    Westie20v

  • #2
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default

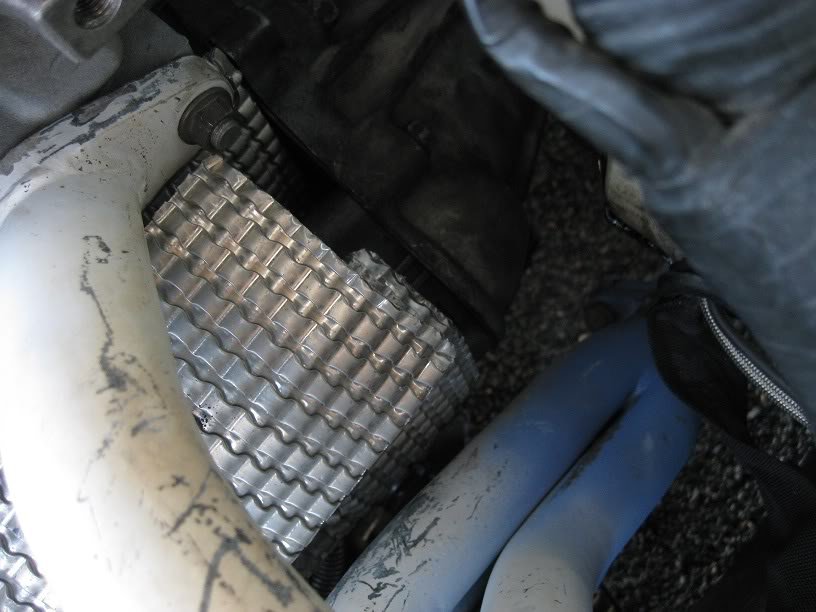

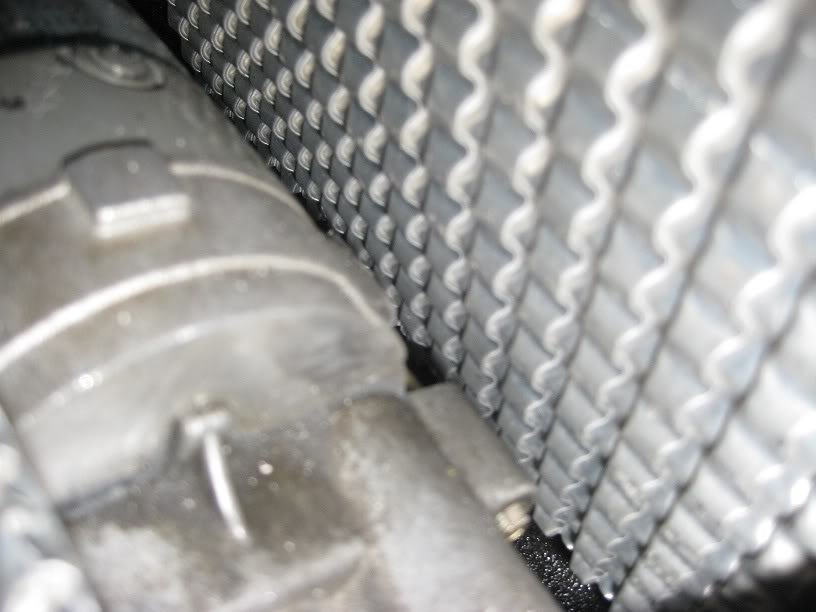

    Hopefully you have a ~1kW reduction starter or something that is worthwhile. It should have a heat shield between it and the exhaust manifold but obviously this is not enough. I doubled the stock heat shield with some ACL stuff and added a square on the block between the starter. I have found that over shielding is just as bad as none as you still want some airflow around it.




  • #3
    Noooob
    Join Date
    Jun 2010
    Name
    Matt
    State
    NSW
    Location
    Campbelltown
    Country
    Australia
    Posts
    5,186

    Default

    If the solenoid is worn, they stick more so when hot than cold...

    A couple of options are to have it rebuilt , golberg offers a service on here to rebuild them, or you can also get a new 1kw one from him as well.

    Me personally, I'd ensure a relay is on the starter solenoid trigger wire ensuring the amperage given to the starter is as high as it can possibly be. Add the heat shield and if you are still having problems look into rebuilding your existing one.
    Ae86 Drivingclub - Toyota AE86 Car Club where AE86 | KE70 | Toyota 86 / GT86 | Subaru BRZ | Scion FRS owners

  • #4
    Junior Member Westie20v's Avatar
    Join Date
    Nov 2012
    Name
    Vince
    State
    Western Australia
    Location
    Perth
    Country
    Australia
    Posts
    3

    Default

    Thanks both

    Being a non-std install the heat shielding is not in place, and whilst there is ample air-flow with the exhaust exiting outside the car I'll fit heat shielding. It does stick when hot not cold also. A solenoid/starter rebuild also sounds the go, but clearly aftermarket high torque units sound like an overkill with these motors.....when not sticking it starts very quickly.

    Cheers

  • #5
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default

    You can get a new Denso 1kW reduction starter, like I have, from Auto Electrics Australia for $190. I'm not sure how much it costs to rebuild but with the state of my old starter I just didn't think it was worthwhile. As Matt said, a relay will do wonders with some proper heat shield.

  • #6
    Junior Member Westie20v's Avatar
    Join Date
    Nov 2012
    Name
    Vince
    State
    Western Australia
    Location
    Perth
    Country
    Australia
    Posts
    3

    Default

    Perfect...why would I bother rebuilding....cheers

  • #7
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default

    My thoughts exactly haha. Throw up some pictures!

  • #8
    Veteran Golberg's Avatar
    Join Date
    Dec 2008
    Name
    Lawrence
    State
    NSW
    Location
    Wollongong
    Country
    Australia
    Posts
    1,339

    Default

    Quote Originally Posted by timbo View Post
    You can get a new Denso 1kW reduction starter, like I have, from Auto Electrics Australia for $190. I'm not sure how much it costs to rebuild but with the state of my old starter I just didn't think it was worthwhile. As Matt said, a relay will do wonders with some proper heat shield.
    Out of interest, is that a genuine Denso unit? Seems too cheap to be, especially if Auto Electrics Australia are selling them to the public for $190.

    As an aside, the most universal problem on the Denso gear reduction units is the solenoid contacts, these are relatively cheap to replace.

    I do a clean, regrease and contact replacement for $80. They are one of the few starters that are worth rebuilding these days because they're cheap to do so and you don't otherwise get lumped with a Taiwanese knock off that lasts as long as the warranty.

  • #9
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Certainly is. I did talk and eventually buy it off a total Celica nut at AEA, so I'm not sure if that is a discounted price.
