Thread: Camshaft timing

  1. #1
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,145

    Default Camshaft timing


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Hey yall,

    I've been trawling the net and DC but I couldn't find anything specific.

    I popped some TRD 272 7.5mm lift cams in the car the other day. Rebuilt smallport, shaved head, TRD 0.8mm HG, TRD copy headers with 2.25' system, I think that's it. I have installed them at the same degree as stock cams, 110. I turned the motor over a few times before starting and fired it up until warm and died until I wound up the idle valve. Sounded great! Drove fine and I could feel the potential of the cams!

    I've been reading up on cam timing from stuff floating on the net but it's kind of hard to get a proper idea without having a wheel in front of me.

    Does anyone have an idea on where to get one and what price? Or anyone that can lend one or expertise? I went up to a local workshop that has a dyno to get an idea on price etc but got the old, high-and-mighty mechanic dribble. I asked how much it would cost to dial/tune the cams in and got a reply of what computer does it run... All I was after was some dyno time to find the best setting! Anyway, that idea is out from that experience.

    Fang up any ideas, suggestions etc!

  • #2
    Senior Member Slimer86's Avatar
    Join Date
    Dec 2008
    Name
    Marco
    State
    SA
    Location
    North Adelaide Suburbs
    Country
    Australia
    Posts
    774

    Default

    Google cam timing wheel, there's a link to one from club 4ag user oldskewltoy. He has also put up info on setting them up properly I think also on 4ag technical references.
    Also believe kelfords have a degree ing instruction on their site.
    My guess would be around 105-6 and 108-112

    http://www.toymods.org.au/forums/tec...4age-cams.html
    http://www.camshaftshop.com/the-sole...g-your-cam.php
    Free degree wheels are on the net

    http://forums.club4ag.com/zerothread?cmd=print&id=65259
    Last edited by Slimer86; 29th November 2012 at 04:04 PM.

  • #3
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,145

    Default

    Ah! I didn't even think to look for a free one. Thanks for the links, I hadn't come across these before.

  • #4
    Noooob
    Join Date
    Jun 2010
    Name
    Matt
    State
    NSW
    Location
    Campbelltown
    Country
    Australia
    Posts
    5,201

    Default

    if you think they made a difference now, wait until you've dialled them in....
    Ae86 Drivingclub - Toyota AE86 Car Club where AE86 | KE70 | Toyota 86 / GT86 | Subaru BRZ | Scion FRS owners

  • #5
    Senior Member DR86FT's Avatar
    Join Date
    Jan 2009
    Name
    Kaan
    State
    QLD
    Location
    Emerald
    Country
    Australia
    Posts
    595

    Default

    I don't even know what cams I have as I didn't get spec sheet is it possible to dial in cams without it

  • #6
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,145

    Default

    I guess you could measure lift and duration and find something similar. From what I've read on TRD cams, 272 and above are suited to IN ATDC 98 and EX BTDC 100, give or take a couple of degrees. At least finding the lift and duration would give you a starting point.

    Also does anyone reading this in Brisbane have a dial gauge?

  • #7
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,145

    Default

    I've confused myself. When cam timing what TDC do you use? As in TDC when all the cam and crank marks line up, cam lobes pointing out on #1 cylinder or pointing at each other, non-firing stroke?

  • #8
    Moderator Frak's Avatar
    Join Date
    Dec 2008
    Name
    Jamie
    State
    SA
    Location
    Adelaide
    Country
    Australia
    Posts
    1,324

    Default

    I'd say that dyno shop doesn't have much of an idea, based on what you say, I'd find another one willing to help.
    Hachiroku since 1994

    Quote Originally Posted by LittleRedSpirit View Post
    When i grow up I wanna be just like Uncle Frak Frak.

  • #9
    Moderator dove grey 64's Avatar
    Join Date
    Aug 2010
    Name
    Geoff
    State
    VIC
    Location
    mt dandenong
    Country
    Australia
    Posts
    2,444

    Default

    Quote Originally Posted by Matt View Post
    if you think they made a difference now, wait until you've dialled them in....
    how true is this, a friend of mine at work who used to work in v8 supercars with larry perkins said that if the cams you've fitted idle and run fine without adjustable cam gears then the difference of getting them timed with cam gears will most likely be 2-5hp at most depending on the type of cams.
    i've always wanted to get my unknown cams dialed in but after he said that i wasnt sure it was really needed especially considering they run alright with the stock ecu.

  • #10
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,145

    Default


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Adjustable cam gears are the key. So far with light adjusting, the T3 gears work perfectly and are nice and smooth.

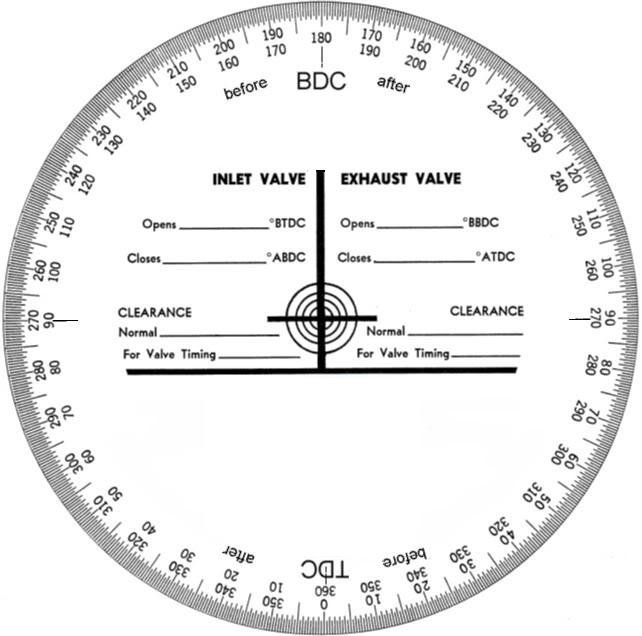

    Still trying to work out the right TDC. I've over thought it and completely confused myself and really need to get the timing wheel in front of me and off the screen. I assume once I'm at TDC I rotate the crank clockwise for the EX cam as it is 100 BTDC then go back to TDC rotate anticlockwise to 98 ATDC for the IN cam. This is the timing wheel I found and cleaned up:
