Wheel fitment pics with details

[ke70dave]

hey folks

to counter the continual asking of questions such as

"what will 15x8 zero offset look like on my hachi"

i have devised a cunning plan...

basically i would like everyone to post up a picture of their wheels on their car with details of the modifications done.

LIMIT OF ONE PICTURE PLEASE. and AE86 and KE70 only

even if you have 13x5.5" + 30mm, so long as its not a stock wheel post it up. i would like a large range of information.

i need a picture that shows the following:

-show how close the wheel is to the edge of the guard
-show how high the car is off the ground (ie where the tyre sits relative to the guard)
-no turned wheels, steering wheel straight ahead (cheers Meathead #2)
please no pictures using wheel spacers.

please only post of rear fitment with STOCK differentials (S series,ke70 borgwarner, or T series) (no hilux/torago etc diffs please)

i have come up with a simple way that i would like you all to post

FRONT WHEELS

please include picture with the following details

-car (ke70 or ae86)
- wheel size (eg 15x8)
-offset (please be exact with this)
-Tyre size
-Lower control arm in use
-Camber (if using stock camber tops with longer control arm please say so)
-work done to guards to make them fit if applicable

REAR WHEELS

please include a picture with the following details

-wheel size (eg 15x8)
-offset (please be exact with this)
-Tyre size
-work done to guards to make them fit if applicable.

oh one last thing informative posts only

also if you see someone who has posted exactly the same setup as your car, you might not need to post, ill let you be the judge of this :2thumbs:

thanks guys

[samuel]

offtopic will be deleted. Post as per guidelines or recieve a warn

[federal]

Front:

14x7+11 Uknown with 185/60/14 A021R, Std Guards, Std control arms, Unflared guards, leaves about 10mm clearance


14x7+3 Performance Challenger with 185/55/14, Flared Guards, Corona Control arms, leaves about 30mm clearance


15x8-9 Performance Challenger with 195/50/15, Flared Guards, Rose-Jointed control arms set to 20mm longer than std, Camber tops set to 3degrees negative, leaves around 20mm


Rear:

MA61 Stockie, 14x7+8 with 185/60/14, Rolled guards, leaves about 12mm clearance


15x8-9 Performance Challenger with 195/50/15, Heavy Rolled, slight outward push, Leaves about 8mm


15x10-26 Performance Challenger with 195/50/15, Pipe Flared UNCUT Guards, leaves about 4mm clearance

[Konakid]

Very good idea for a thread! we needed a wheel fitment thread, but make sure that the pics are actually worthwhile posting and the way the rim sits can be seen clearly, i.e no turned wheels, side on angles, etc. Will get some pics up now.

Front

14x7 +8 with 8mm spacer (14x7 +-0)
185/60
-1.5 camber (stock strut tops)
10mm longer lca's
rolled guard (sat dead even with the guard line)

Rear

14x7 +11 with 5mm spacer (14x7 +6)
185/60
rolled and slightly hammered guard (+5mm)




Will get more pics up when new wheels arrive and guards are done.

Hoping 741 can come through with the ae86 fitment pics!

[ke70dave]

cheers for the reply's guys

hey kona kid, the pics don't seem to be working

sais something like "this image has been moved or deleted"

BTW i tried to type kona kid as one word and it changed it to "meathead #2"

someone is playing silly buggers...

[Konakid]

I'm on it, fucking photo bucket... hasnt worked for weeks, yeah thats Nick, its hilarious.

[ke70dave]

any more takers...?

[drft86]

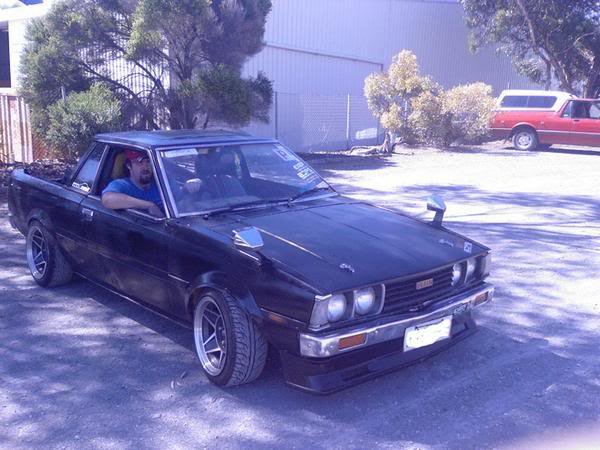

[attachment=25782:16032008.jpg]

15 x 8 -3, with 25mm spacer (-28)
195/50/15
ke70 guards flared and welded on

[Konakid]

AE86 (Amuldays Car)
14x8JJ -14
185/60's
Stock rear Guard

[ke70dave]

absolutely perfect picture kona kid!

keep them coming guys, I'm about to post them all up on the FAQ
