Thread: Bigport head differences?

  1. #1
    Senior Member JDM-086's Avatar
    Join Date
    Dec 2008
    Name
    Dario
    State
    VIC
    Location
    Melb
    Country
    Australia
    Posts
    509

    Default Bigport head differences?


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    Just trying to work out why this bigport 4age head is different
    I get the feeling one is a GZE head.
    If so what differences are there? this is for a future NA build so i want to make sure I use the right head.

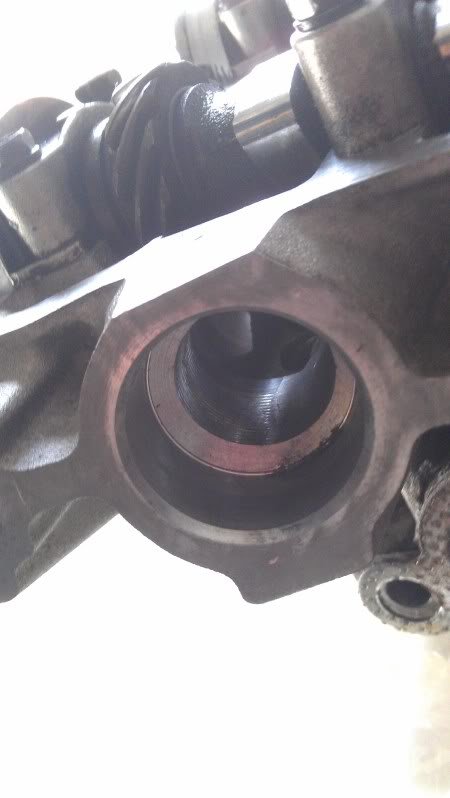

    also whats up with those grooves??

  • #2
    Moderator Sam-Q's Avatar
    Join Date
    Dec 2008
    Name
    Sam
    State
    VIC
    Location
    Endeavour Hills
    Country
    Australia
    Posts
    4,238

    Default

    those lumps are oil channels, got any more pics?
    My website: SQ Engineering - 4AGE and 3SGE upgrade/replacement parts

    - SQ Engineering on facebook -

    Please e-mail to contact me instead of sending a private message on here.

  • #3
    Senior Member JDM-086's Avatar
    Join Date
    Dec 2008
    Name
    Dario
    State
    VIC
    Location
    Melb
    Country
    Australia
    Posts
    509

    Default

    nah but i can take more. any specific areas? i just took these as at a glance they were the only notable differences

  • #4
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default

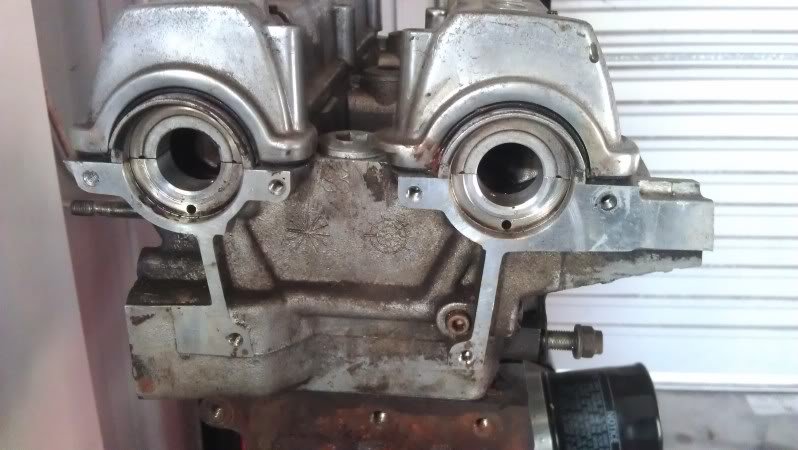

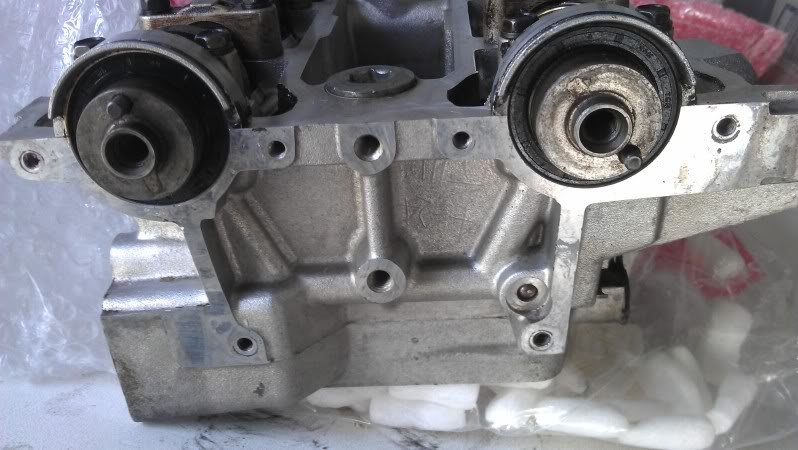

    Top head is from an AE86 ONLY, it has no mount for FWD between the cams. Second has the mounts so it could be from anything, MR2 or Corolla. If it's bigport all you can do is guess what it's off.

  • #5
    Senior Member JDM-086's Avatar
    Join Date
    Dec 2008
    Name
    Dario
    State
    VIC
    Location
    Melb
    Country
    Australia
    Posts
    509

    Default

    ok so the head with the 2 holes between the cams simply means it's a FWD/MR 4age.
    I'll have to speak to the previous owner.
    Apart from the cams are there any other differences? how do i ID the cams?

  • #6
    Veteran maxhag's Avatar
    Join Date
    Dec 2008
    Name
    JoJo
    State
    ACT
    Location
    Tuggeranong
    Country
    Australia
    Posts
    2,789

    Default

    I have heads lying around that are like what you have aswell....

  • #7
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default

    Cam's you would have to measure, unless you pull them out of a stock motor!

  • #8
    Senior Member JDM-086's Avatar
    Join Date
    Dec 2008
    Name
    Dario
    State
    VIC
    Location
    Melb
    Country
    Australia
    Posts
    509

    Default

    this might sound stupid... which parts do i measure exactly?

  • #9
    Veteran timbo's Avatar
    Join Date
    Aug 2009
    Name
    Tim?
    State
    QLD
    Location
    Wild West
    Country
    Australia
    Posts
    2,141

    Default

    The lobes, tear drop bits. Google for the different lifts between big and small port.

  • #10
    Veteran lolwat's Avatar
    Join Date
    Oct 2009
    Name
    Michael
    State
    NSW
    Location
    Crimebrook 2749
    Country
    Australia
    Posts
    3,974

    Default


    TO REMOVE ADS, PLEASE
    REGISTER OR SIGN IN
    bigport is slightly more agressive, throw them in a smartport head
